ESP32-C6 1.8-inch 368x448 AMOLED Display Dev Board, Wi-Fi 6, BLE 5, Zigbee

Waveshare

No reviews yet Write a Review
SKU:
061-33366
MPN:
33366
ESP32-C6 1.8 inch AMOLED display development board with Wi-Fi 6 and capacitive touch
ESP32-C6 development board with 1.8-inch capacitive touch AMOLED display, Wi-Fi 6, Bluetooth 5, Zigbee/Thread support, IMU, RTC, TF card slot, and advanced power management for smart IoT and portable applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,147.15 inc. GST
₹2,667.08 ex. GST
2 people looking at this.

Technical Specifications

Brand:
Waveshare
Display Panel:
AMOLED
Resolution:
368x448 Pixels
Brightness:
350cd/2
Communication Interface:
QSPI
Touch:
Supported
Display Size:
1.8 inch
Color:
16.7M
Contrast Ratio:
100000:1
Display Driver:
SH8601
Touch IC:
FT3168 / FT6146

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Wiki: docs.waveshare.com/ESP32-C6-Touch-AMOLED-1.8

ESP32-C6 1.8 Inch 368×448 AMOLED Display Development Board Supports Wi-Fi 6 BLE 5 And Zigbee

The ESP32-C6 1.8 inch AMOLED Display Development Board is a compact, feature-rich platform designed for next-generation IoT, smart display, and wireless embedded applications. Powered by the ESP32-C6 high-performance 32-bit RISC-V processor running up to 160MHz, it integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 wireless technologies, enabling Zigbee 3.0 and Thread networking on a single board. The onboard 1.8-inch capacitive touch AMOLED display with 368x448 resolution delivers vibrant visuals, high contrast, and low power consumption. With extensive onboard peripherals including IMU, RTC, TF card slot, advanced power management, and USB Type-C connectivity, this development board provides a complete hardware foundation for building smart home panels, wearable devices, portable instruments, and interactive IoT applications.

Key Features

  • ESP32-C6 RISC-V Processor – High-performance 32-bit CPU operating up to 160MHz for efficient IoT processing
  • Wi-Fi 6, Bluetooth 5 & IEEE 802.15.4 – Supports Zigbee 3.0 and Thread with superior RF performance and onboard antenna
  • 1.8-Inch Capacitive Touch AMOLED Display – 368x448 resolution with 16.7M colours for sharp, vivid visuals
  • AMOLED Display Technology – High contrast, wide viewing angles, fast response time, thin profile, and low power consumption
  • Built-in Display & Touch Controllers – SH8601 display driver via QSPI and FT3168 / FT6146 touch controller via I2C, saving IO resources
  • Rich Memory Configuration – 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and external 16MB Flash memory
  • Onboard 6-Axis IMU – QMI8658 accelerometer and gyroscope for motion sensing applications
  • RTC with Backup Power Support – PCF85063 RTC powered via AXP2101 with reserved backup battery pads
  • Advanced Power Management – AXP2101 PMIC supports battery charging, management, multiple voltage outputs, and power optimisation

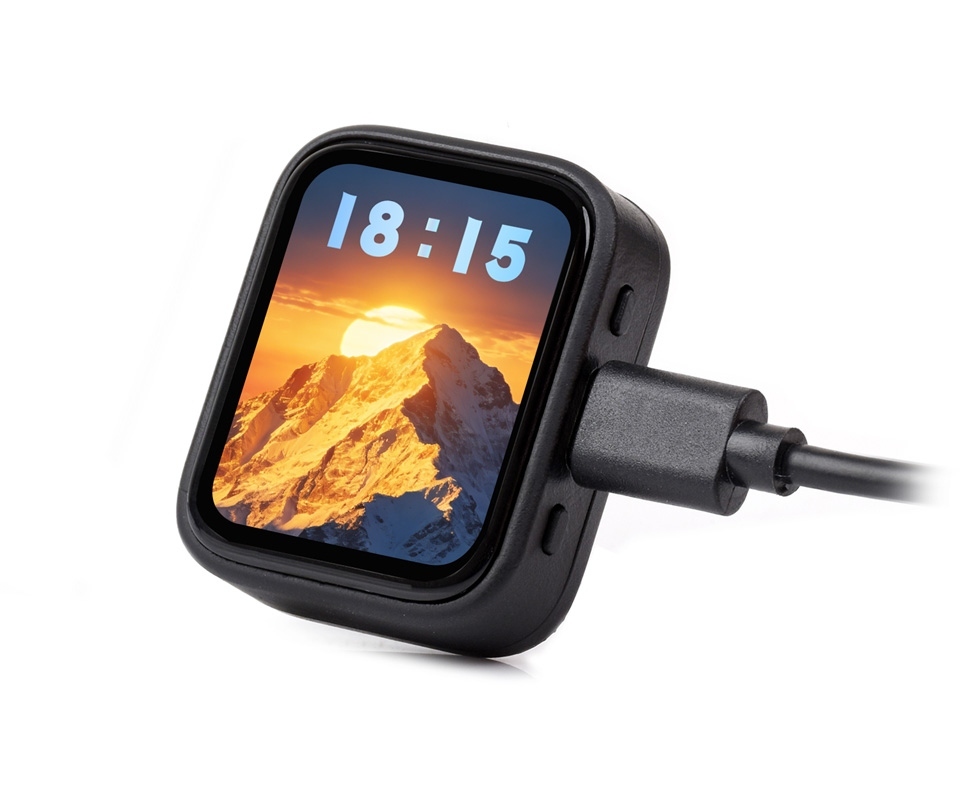

  • USB Type-C Interface – Simplifies power delivery, programming, and debugging
  • Lithium Battery Support – 3.7V MX1.25 battery recharge/discharge header for portable applications
  • Expandable Storage – TF card slot for data logging, media storage, and fast data transfer
  • Flexible Peripheral Expansion – I2C, USB, and UART pads for external device connectivity

  • Programmable PWR & BOOT Buttons – Enables custom functionality and easy firmware control.

ESP32-C6 1.8inch Touch AMOLED
Display Development Board

Embedded with SH8601 Display Driver & FT3168 / FT6146 Capacitive Touch Chip

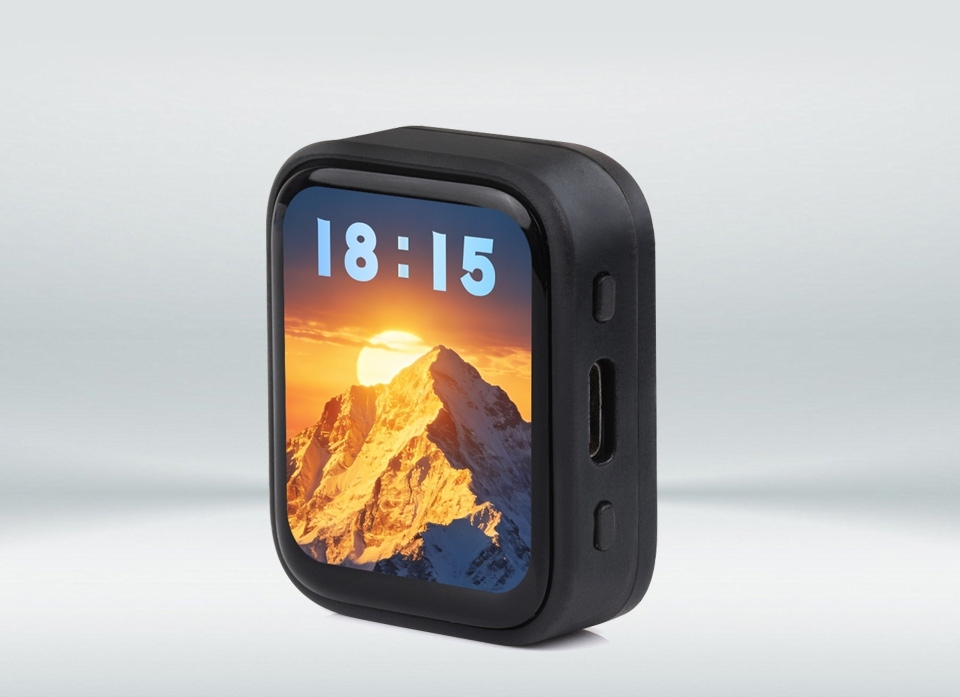

Tiny Size, Touch More Possibilities

Suitable for diverse smart device development, enabling human-machine interface function, and supporting connecting to a battery for independent operation.


Adopts AMOLED Screen

Compared to typical LCD displays, the AMOLED screen provides accurate light control capability, displaying more delicate colors, more picture details, and more vibrant video images.

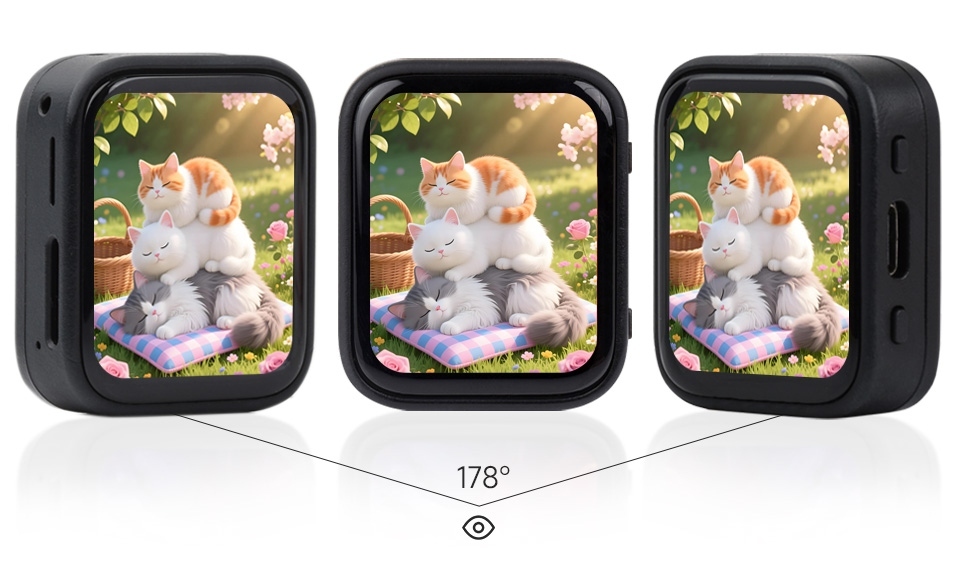

178 Wide Viewing Angle


Excellent Display Performance, 16.7M color, wide viewing angle


Wi-Fi 6 And BLE 5 Support

supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

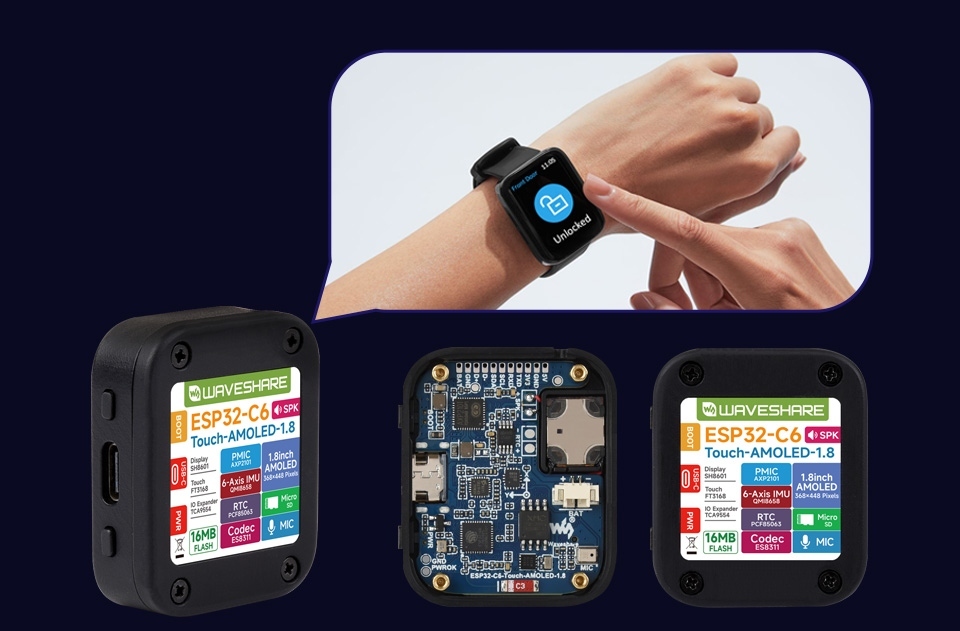

Dedicated Black Case, Unique Design

With Removable Back Cover For Easy Embedded Into The Projects And DIY Design

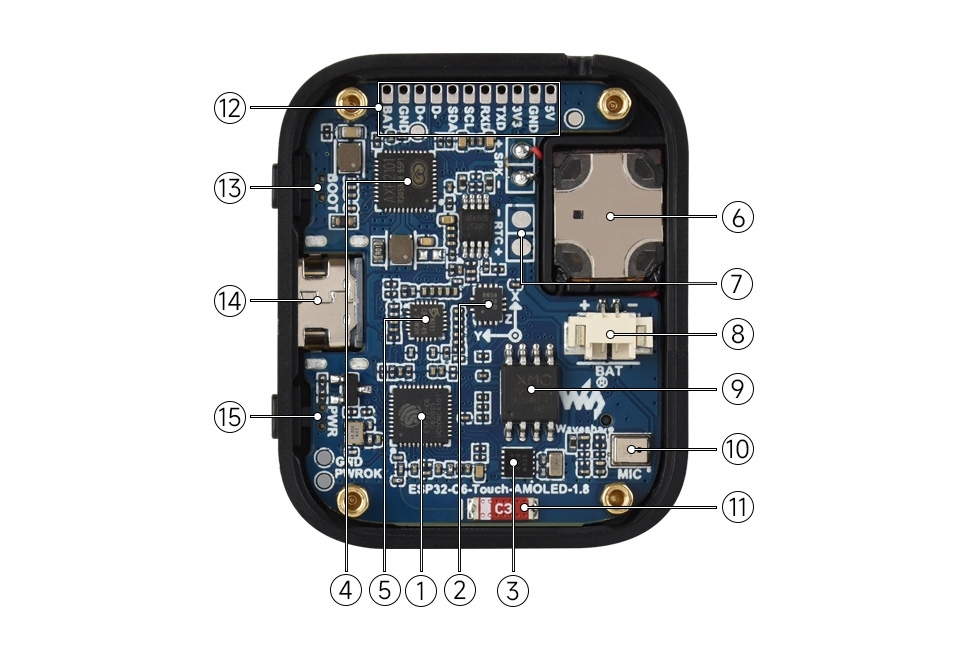

What's On Board

  1. ESP32-C6
    The SoC with WiFi and Bluetooth, up to 160MHz operating frequency
  2. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  3. PCF85063
    RTC chip
  4. AXP2101
    Highly integrated power management IC
  5. ES8311
    Low power audio codec IC
  6. Speaker
  7. Backup Batt pads
    for connecting backup Batt, ensuring RTC function during the replacement of the main Batt
  8. MX1.25 Lithium Batt header
    MX1.25 2PIN connector, for 3.7V Lithium Batt (optional), supports charging and discharging. (To fit inside the case, a Batt size of 3.85 × 24 × 28 mm is recommended)
  9. 16MB NOR-Flash
    for storing data
  10. Microphone
    for audio capture
  11. Onboard antenna
    supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  12. Reserved GPIO pads (pitch 1.5mm)
    Adopting available I/O function pins for easy expansion
  13. BOOT button
    for device startup and function debugging
  14. USB Type-C port
    ESP32-C6 USB interface, for programming and log printing
  15. PWM button
    for system power supply ON/OFF, supports custom

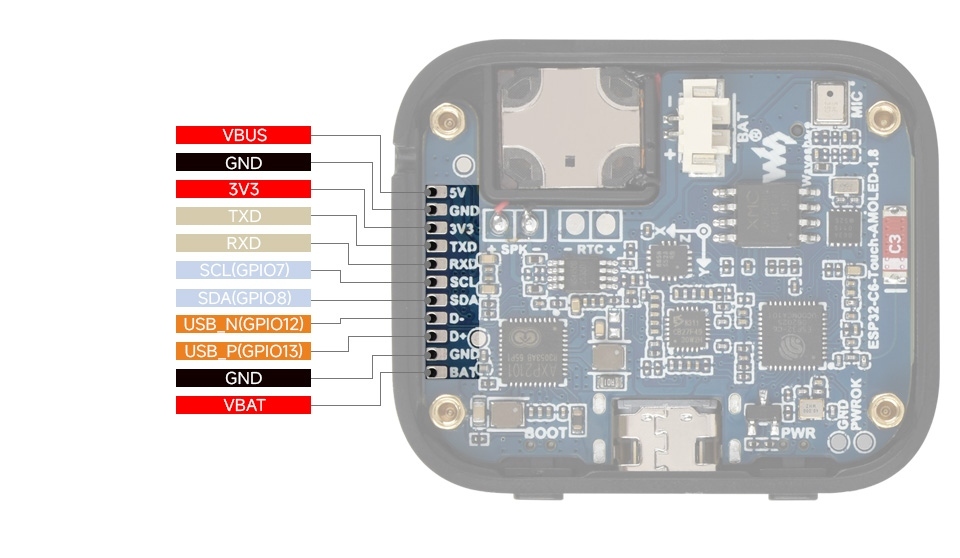

Pin Definition

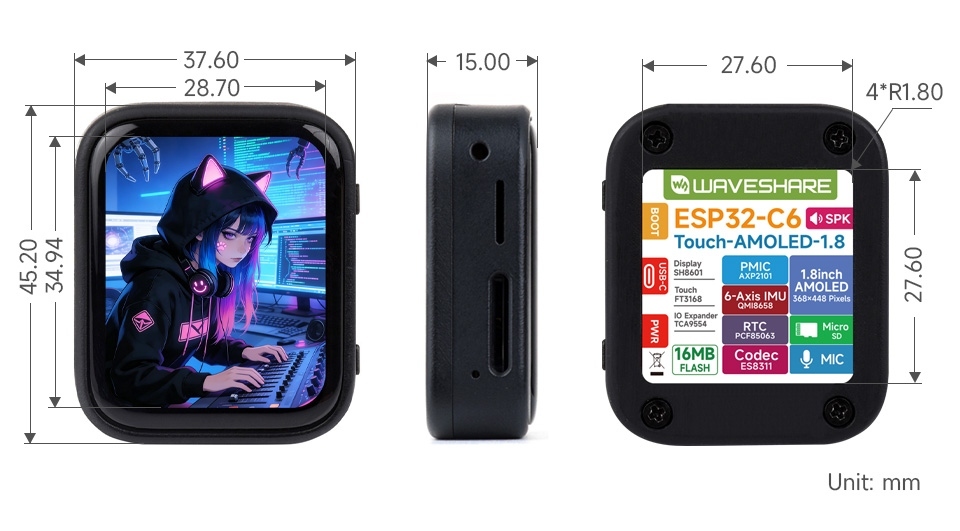

Dimensions

Package Includes:

  1. ESP32-C6-Touch-AMOLED-1.8 hostx1
