Dragon Q6A Qualcomm QCS6490 Octa-core Development Board for Edge AI

Radxa

No reviews yet Write a Review
SKU:
498-RS701-D8J0R44S32Y13W28
MPN:
RS701-D8J0R44S32Y13W28
Dragon Q6A 8GB Qualcomm QCS6490 Octa Core Platform Radxa edge AI computing board
Dragon Q6A by Radxa features the Qualcomm QCS6490 octa-core processor with 8GB RAM, offering powerful AI, vision processing and edge computing performance. Ideal for industrial automation, robotics, IoT and intelligent embedded applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹11,298.50 inc. GST
₹9,575.00 ex. GST

Technical Specifications

Brand:
Radxa
SoC:
Qualcomm QCS6490
CPU:
1xKryo Prime @ 2.7GHz,3xKryo Gold @ 2.4GHz,4xKryo Silver @ 1.9GHz
GPU:
Qualcomm Adreno 643- OpenGL ES 3.2, 2.0, 1.1,- Vulkan 1.1 / 1.2 / 1.3,- OpenCL 2.2,- DirectX Feature Level 12
RAM:
8GB
Expandable Storage:
Supports MicroSD card / eMMC module / UFS module / M.2 M Key 2230 NVMe SSD
Display:
HDMI 2.0: up to 4K@30Hz,MIPI DSI: 1x4-lane
Camera:
MIPI CSI: 1× 4-lane (split to 2x 2-lane),MIPI CSI: 2x2-lane
Wireless:
Wi-Fi 6 (802.11 a/b/g/n/ac/ax),Bluetooth 5.4 with BLE,Quectel FCU760K Module (AIC8800D80 chipset),2xexternal antenna connectors
Ethernet:
1xGigabit Ethernet with PoE support (via optional HAT)
USB:
1xUSB 3.1 Type-A OTG,3x USB 2.0 Type-A HOST,1× USB 2.0 Type-C Power
Expansion:
M.2 M Key: PCIe Gen3 x2 (supports 2230 NVMe SSDs),Not compatible with SATA,40-pin 2.54mm GPIO header,UART / I2C / SPI / GPIO / PWM,2× 5V in/out, 2× 3.3V out
Audio:
3.5mm Audio Jack
Power:
12V via USB Type-C or Power input header,Recommended: ≥18W light load, ≥24W full load
Software:
Supports Radxa OS, Ubuntu Linux, Qualcomm Yocto Linux, Armbian, Arch, Deepin, Fedora, Windows
Dimensions:
85 mmx56 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Getting Started

Dragon Q6A Qualcomm QCS6490 Octa-Core Platform

Exceptional Performance, Ushering in a New Era of
Intelligent Edge Computing

Built upon the Qualcomm QCS6490 chipset platform, the Radxa Dragon Q6A is a high-performance,
low-power industrial-grade single board computer designed for Industrial IoT (IIoT), Edge AI,
and smart terminals.

The Dragon Q6A from Radxa is a powerful embedded computing platform built around the Qualcomm QCS6490, an advanced octa-core processor designed for edge AI, industrial IoT, robotics and smart devices. Equipped with 8GB LPDDR4X RAM, this platform delivers exceptional multitasking capability, high-efficiency performance and robust AI acceleration for demanding real-time applications. The QCS6490 integrates next-generation CPU, GPU and DSP architectures, enabling smooth multimedia processing, advanced computer vision, machine learning inference and low-latency control. With support for Wi-Fi, Bluetooth, high-speed I/O interfaces and multiple display outputs, the Dragon Q6A offers outstanding flexibility for developers building intelligent systems, edge computing nodes, autonomous equipment and AI-enhanced embedded solutions. Its compact form factor, industrial-grade reliability and Radxa’s developer-friendly ecosystem make it an ideal choice for professional projects requiring high performance, energy-efficient processing and long-term stability.

Wireless and Wired, High-Speed Connectivity

Integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.4, providing stable and high-speed wireless network connections.

Equipped with a Gigabit Ethernet interface, supporting PoE power supply (additional PoE expansion board
required), achieving network and power supply through a single cable.

Key Features:

  • Qualcomm QCS6490 Octa-Core Processor: High-performance CPU architecture designed for edge AI, automation and real-time embedded applications.
  • 8GB LPDDR4X RAM: Provides fast data throughput and smooth multitasking for complex workloads.
  • Advanced AI & Vision Capability: Powerful GPU and DSP enable efficient machine learning, multimedia processing and computer vision.
  • Rich Connectivity Options: Supports Wi-Fi, Bluetooth, multiple display interfaces and high-speed I/O expansion.
  • Industrial-Grade Reliability: Stable operation with long lifecycle support suitable for commercial and industrial deployments.
  • Compact & Developer-Friendly: Ideal for robotics, smart devices, automation systems and next-generation IoT solutions.

Robust Software Ecosystem, Flexible Multi-System Adaptation

The Qualcomm QCS6490 platform offers long-term support, compatible with various operating systems
including Linux (Yocto, Ubuntu, Deepin, Fedora, Armbian, Arch), and Windows 11 IoT Enterprise, meeting the
needs of different application scenarios.

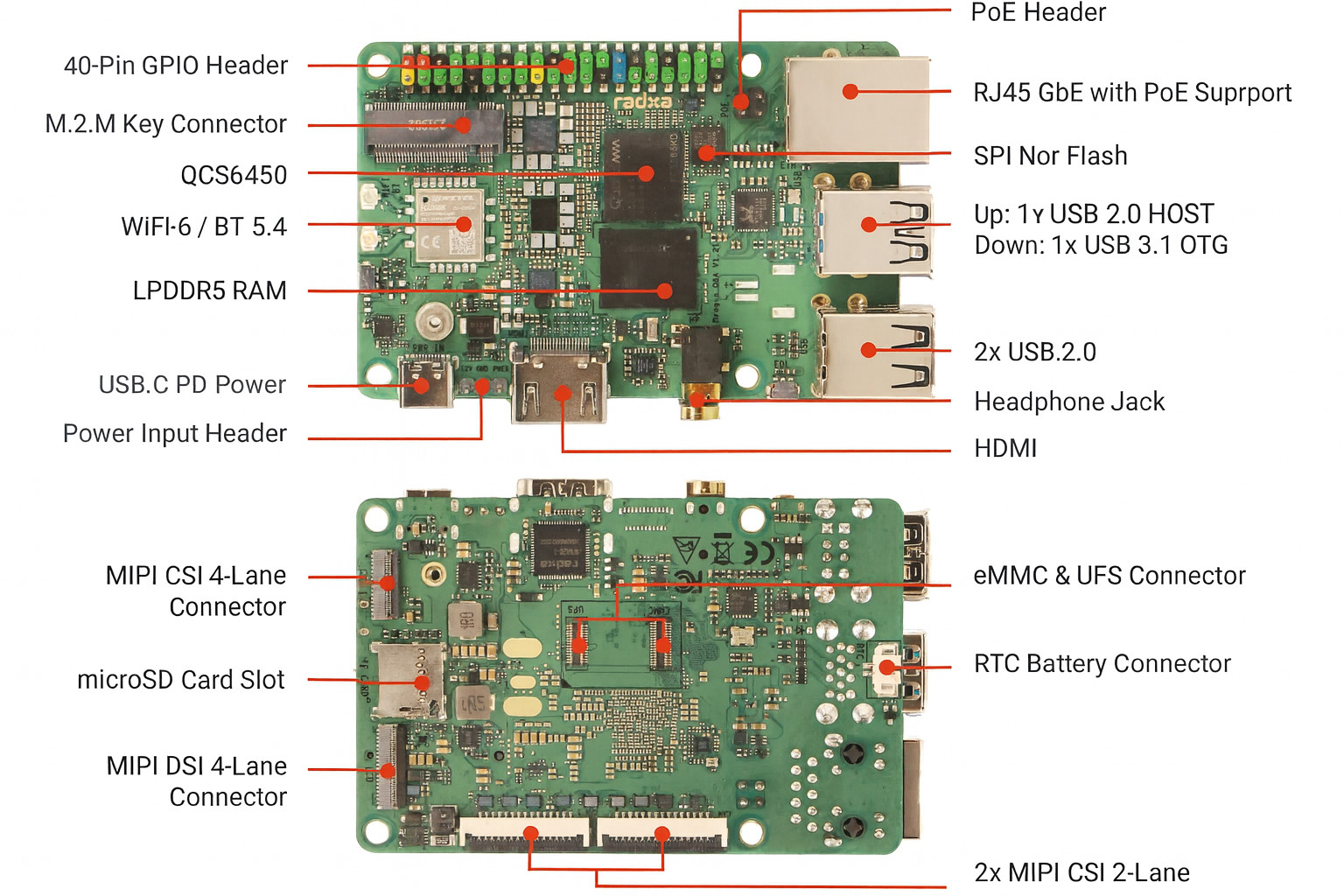

Interfaces
