Name: DFM8001 Indoor Ambient Energy Harvesting Kit (Mechanical, Thermal, Solar, RFEH)
Brand: DFRobot
SKU: 147-KIT0197
Price: 1770 INR
Availability: InStock

Technical Specifications

Brand:

DFRobot

Operating Voltage:

3.3-5.5V DC

Cold start condition:

Input ≥ 400mV 15uW

The sustaining voltage after cold start:

150mV

Input voltage range:

150mV-5V

MPPT ratio:

70%, 75%, 85%, 90% (adjustable)

MPPT automatic detection frequency:

5 times per second

Dual LDO voltage regulation output:

Low voltage：1.2-1.8V 20mA (with switch), High voltage：1.8-4.1V 80mA (with switch)

Energy storage management:

Adjustable overcharge protection:2.7V-4.5V Adjustable overdischarge protection:2.2V-3.6V Suitable for any type of rechargeable battery or capacitor Low battery warning LDO output available indication

Dimensions:

15x15x3.5 mm

Amorphous silicon light energy board size:

45x45mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Unleash Indoor Energy with the DFM8001 Ambient Energy Harvesting Kit: Elevate Your Power Solutions Today

The DFM8001 Indoor Ambient Energy Harvesting Kit is your gateway to tapping into natural energy sources within indoor environments. Whether it’s mechanical, thermal, solar, or radio frequency energy, this comprehensive kit provides all the tools necessary to build efficient ambient energy power systems. Equipped with an energy harvesting evaluation board, amorphous silicon photovoltaic panels, and a supercapacitor energy storage module, the DFM8001 is engineered for seamless assembly and superior performance.

This kit is not only cost-effective but also versatile, collecting and storing energy even from weak sources, thanks to its dynamic Maximum Power Point Tracking (MPPT) technology. This feature continuously optimizes energy collection to ensure maximum efficiency. Additionally, it integrates essential functions like charge and discharge management, energy storage management, and dual-channel voltage stabilization output, making it a robust solution for various applications.

The included amorphous silicon photovoltaic panel offers excellent performance, with options to upgrade to higher efficiency panels such as organic or dye-sensitized solar panels, allowing customization based on specific needs. This adaptability makes the DFM8001 kit an ideal choice for a wide range of indoor energy harvesting scenarios.

Key Features:

Versatile Energy Collection: Harnesses mechanical, thermal, solar, and radio frequency energy.
Efficient Energy Storage: Capable of collecting and storing weak to microwatt-level energy.
Dynamic MPPT Technology: Features dynamic Maximum Power Point Tracking for optimal energy collection.
Comprehensive Management: Integrates charge, discharge, and energy storage management functions.
Stabilized Output: Provides dual-channel voltage stabilization output for consistent performance.

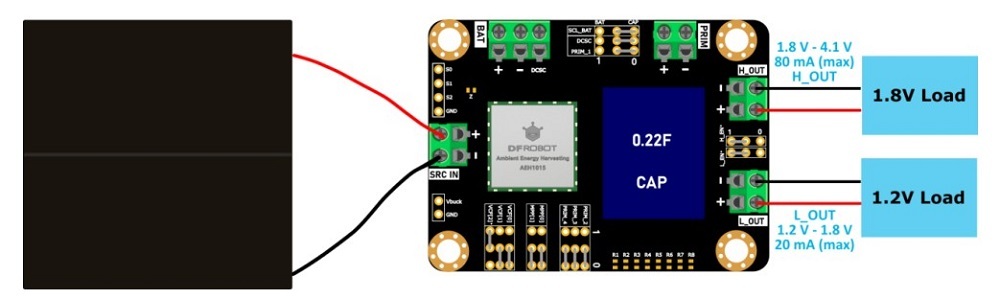

Complete Kit Components: Includes the DFM8001 evaluation board, photovoltaic panels, and a supercapacitor energy storage module.
Upgradeable Panels: Option to use higher efficiency photovoltaic panels like organic or dye-sensitized panels.
Backup Battery Support: Supports a disposable backup battery for uninterrupted power supply.
High Performance: Amorphous silicon light energy panel offers 70% maximum power point efficiency and 90uW@200Lux power output.
