D9018MG Digital Micro Servo Motor 11g Full Metal Gear For RC Fixed-Wing Helicopter Drone

DYS

No reviews yet Write a Review
SKU:
448-GS-D9018MG
MPN:
GS-D9018MG
GOTECK D9018MG 11g digital micro servo with full metal gears and ball bearings for RC drones and aircraft
D9018MG 11g Digital Micro Servo (2PCS) offers full metal gears, ball bearings, high torque, smooth precision control and overload protection—ideal for RC aircraft, drones, helicopters, vehicles and robotics. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹652.05 inc. GST
₹621.00 ex. GST
15 people looking at this.

Technical Specifications

Brand:
DYS
Operating Temperature:
-20 C~+60 C
Operating Voltage:
4.8V ~ 6VDC
Working Frequency:
1520 us / 333hz
Torque:
1.8kg.cm at 4.8V; 2.2kg.cm at 6V
No load speed:
0.13S/60 at 4.8V; 0.11S/60 at 6V
Corner Angle:
180
Product Weight:
11g
Dimensions:
23x12.1x26.4mm
Motor Type:
DC motor
Gear Type:
Metal gear
Dead band width:
4 usec
Circle:
15000 times
Direction:
Re-clock wise/ Pulse Travel 1000 to 2000 usec
Bal Bearing:
Top ball bearing
Case Material:
POM
Connector Wire Length:
180mm
Connector Wire Gauge:
26AWGheavy duty
Wire Info (Brown):
Negative
Wire Info (Red):
Positive
Wire Info (Orange):
S Single

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

2PCS Digital Micro Servo Motor 11g Full Metal Gear for RC Fixed-Wing, Helicopter & Drone

The GOTECK D9018MG 11g Digital Micro Servo (2PCS) set is built for high precision, durability and smooth actuation in demanding RC applications. Featuring a full metal gear train with hard anodizing and ball bearings, this servo ensures exceptional strength, reduced gear wear and a significantly longer lifespan compared to plastic-gear alternatives. Despite its compact 11g form factor, the D9018MG delivers extra-large torque, low noise, stable operation and excellent linearity—making it ideal for RC fixed-wing aircraft, helicopters, drones, RC vehicles, robots and intelligent control systems.

Designed with built-in protection logic, the servo automatically performs current reduction and power cutoff if a locked-rotor situation exceeds preset thresholds, preventing overheating or damage. Its wide control input range of 500–2500 us supports precise 180 rotation, enabling reliable and accurate motion for micro and mini-scale RC mechanisms.

Key Features

  • Full Metal Gear Construction: Hard-anodized gears provide superior durability and prevent gear stripping.
  • Ball Bearing Support: Ensures smooth, low-friction performance and extended lifespan.
  • High Precision Digital Control: Delivers accurate, stable and vibration-free actuation.
  • Extra-Large Torque Output: Strong performance suitable for aircraft control surfaces, rotor heads and mini robotics.
  • Low Noise & Smooth Operation: Quiet movement ideal for sensitive or high-precision systems.
  • Intelligent Protection System: Built-in overload and locked-rotor protection prevents servo burn-out.
  • Wide Control Range: Supports 500–2500 us signals with accurate 180 movement.
  • Versatile Applications: Perfect for RC planes, drones, helicopters, cars, boats, robotics, toys and automation systems.
  • Compact 11g Design: Easy integration into small and mid-sized RC builds.

Package Includes:

  • 2xD9018MG Full Metal Gear Digital Servo

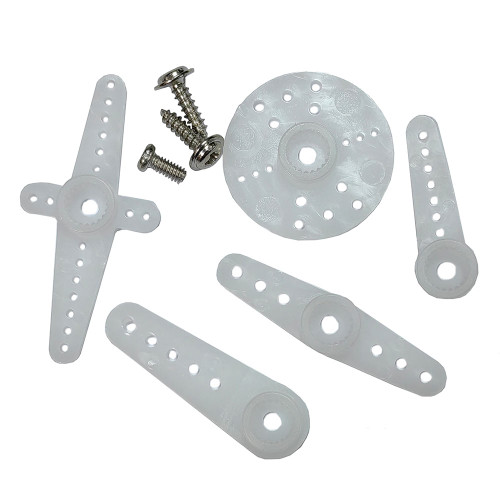

  • 2xServo Accessories
