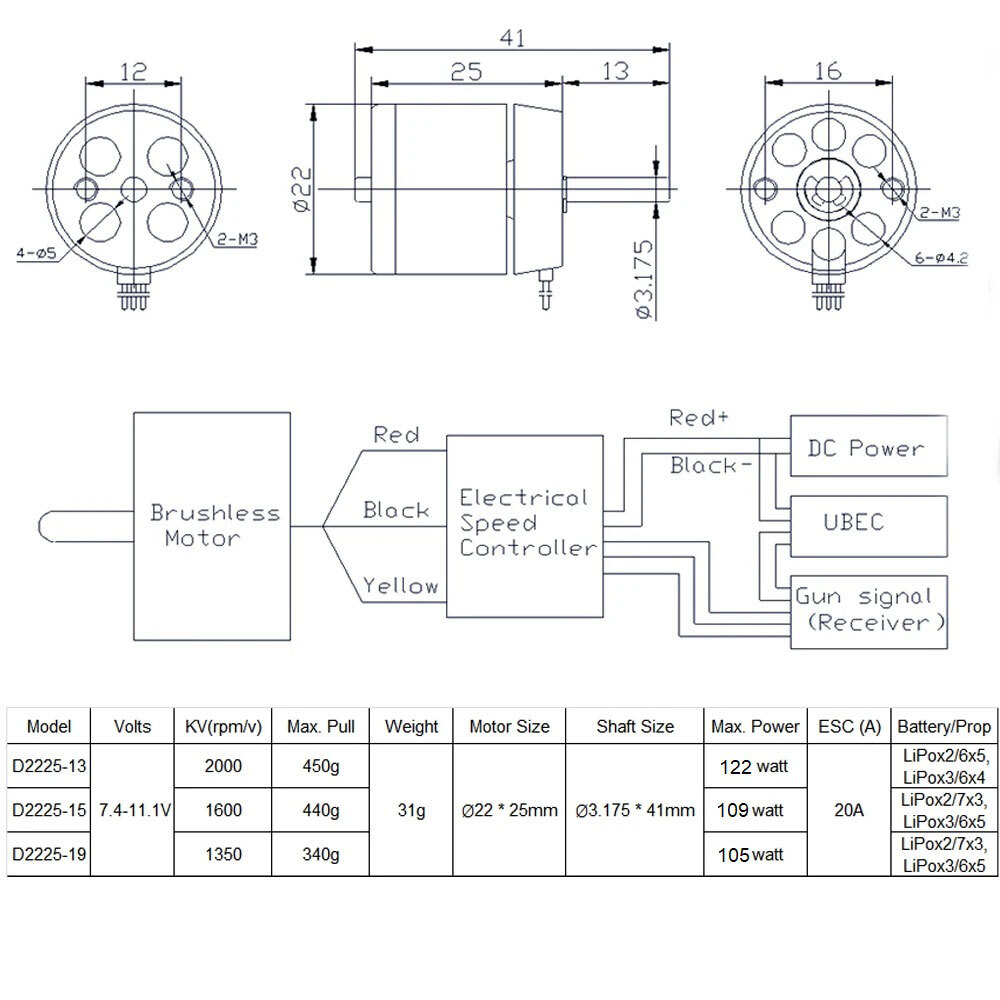

Technical Specifications

Brand:

DYS

Fit For Battery:

2-3 Li-Po

Shaft Size:

3.17mm

Weight:

32g

Motor Size:

22x25mm

Shaft Size:

3.17x41mm

Motor Mount:

16 mm

Working Temperature Range:

-20 C~+80 C

Max Pull:

440g

Volts:

DC7.4~11.1V

Suggested ESC:

18A

Maximum Power:

109W

Suggested Prop:

7 inch prop

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

D2225 1600KV Brushless Motor for Fixed-Wing Aircraft, Multicopter and Quadcopter Drones – Reliable Power with Smooth, Efficient Flight Performance

The D2225 1600KV brushless motor is engineered for stable, efficient and controlled power delivery across fixed-wing aircraft, quadcopters and multicopter drones. Its 1600KV rating provides balanced thrust suitable for long-endurance flights, training platforms, aerial photography builds and lightweight RC planes. Designed with premium magnets, precision windings and a robust casing, this motor reduces vibration, improves efficiency and ensures dependable operation over extended use. Its lightweight structure enhances responsiveness while supporting better battery performance for both beginners and advanced hobbyists.

Key Features:

Balanced 1600KV Output: Ideal for stable, controlled flights in fixed-wing and multirotor applications.
High-Efficiency Brushless System: Reduced heat, longer lifespan and smooth throttle transitions.
Lightweight and Durable Build: Supports longer flight times and reliable performance.
Low-Vibration Motor Design: Precision balancing enables steady operation and improved flight stability.
Wide Drone Compatibility: Suitable for quadcopters, multicopters, RC planes and DIY drone projects.
Quality Construction: Strong bearings, high-grade windings and rugged housing for long-term use.
