Technical Specifications
Brand:
Radxa
SoC:
Allwinner A733
CPU:
2x Arm Cortex-A76 up to 2.0GHz,6x Arm Cortex‑A55 up to 1.8GHz,1x Alibaba RISC-V XuanTie E902 up to 200MHz
GPU:
Vulkan 1.3,OpenGL ES 3.2,OpenCL 3.0
NPU Computing Power:
3TOPS
NPU Precision Support:
INT8 / INT16 / FP16 / FP32
Codec Video Encoder:
H.265 / H.264 up to 4K 30fps
Codec Video Encoder:
H.265 / VP9 / AVS2 up to 8K 24fps, H.264 up to 4K 30fps
RAM:
6GB,8GB,12GB
Storage:
1x Onboard SPI Flash for bootloader,1x MicroSD Slot,1x eMMC & UFS Combo Connector,1x PCIe Gen3.0 1-lane (Supports NVMe SSD Expansion)
Video Output:
1x HDMI 2.0 (Supports displays up to 4Kp60 resolution),1x 4-lane MIPI DSI
Video Input 1x MIPI Camera Interfaces:
Configurable as 1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI,Ideal for AI vision applications
Network:
1x Onboard WiFi 6 / BT 5.4 with external antenna,1x Gigabit Ethernet Port,
Network Speeds:
10 / 100 / 1000Mbps
Network:

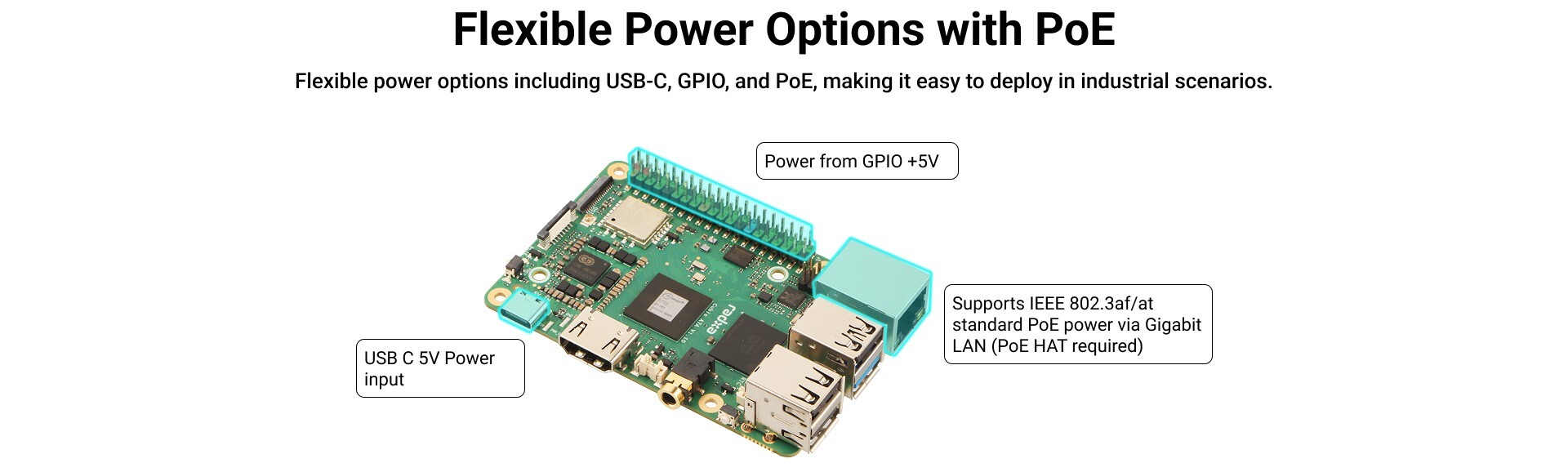

Supports IEEE 802.3af/at standard PoE power via GbE (PoE HAT required)
USB:
1x USB 2.0 OTG Type-C for Power and Data,1x USB 3.1 HOST Type-A,3x USB 2.0 HOST Type-A
Power:
1x USB Type-C (5V/3A or 5V/4A)
Button:
1x USB BOOT Button
GPIO:
40-Pin GPIO Header with I2C / SPI / PWM / I2S etc
Dimension:
85 mm x 56 mm
