CNC Router Machine TTC-6050 (Working Area 23.6x19.6x3.9 inch)

TwoTrees

No reviews yet Write a Review
SKU:
507-622300003
MPN:
622300003
TwoTrees CNC Router Machine TTC-6050 with 500W spindle, 600x500x100mm work area, high-speed precision carving at 5000mm/min, infrared safety sensors, and compatibility with wood, metal, and acrylic materials for versatile projects.
The CNC Router Machine TTC-6050 delivers precision carving, engraving, and cutting with a robust design, user-friendly controls, and compatibility with various materials. Ideal for hobbyists and professionals seeking high-performance CNC solutions. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
Sale • Save 19%
Was
₹170,510.00
₹144,500.00
₹136,862.30 inc. GST
₹115,985.00 ex. GST

Technical Specifications

Brand:
TwoTrees
Name:
CNC Woodworking Engraving Machine
Model:
TTC6050
Forming Technology:
CNC
Main Body Colour:
Red and Black Colour Scheme
Engrave Material:
Plywood/MDF/Solid wood/Acrylic/Carbon fiber/Aluminum/Copper/Stainless steel
Main Body Material:
Aluminium + Injection Moulding + C7 Ball Screw + Linear Guides Aluminium Shell Material: Aluminium
Product Size:
811mm x 769mm x 530mm (without control box)
Power Supply:
24V 3A
Switch Power:
INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A
Control Box Size:
300mm x 137mm x 131mm
Working Range:
600mm x 500mm x 100mm (23.6in x 19.6in x 3.9in)
Supported Tool Diameter:
0.5mm to 7mm (ER11 Collet)
WiFi-2.4GHz:
Support (built-in)
TF Memory Card:
Support
USB Port:
Support
Optimum Engraving Ambient Temperature:
0–40C
X/Y Axis Positioning Accuracy:
0.01mm
Z-Axis Positioning Accuracy:
0.0025mm
Engraving Accuracy:
1000 ± 0.5mm
Maximum Engraving Speed:
5300mm/min
Maximum Acceleration:
500mm/s²
Laser/CNC Function Switching:
Support
Language Switching:
Support (Chinese/English/German/Russian/Japanese/French/Portuguese/Spanish)
Supported Systems:
macOS / Windows / Linux
Frame Construction:
Sheet Metal + Aluminium Profiles + Injection Parts + Linear Guides + Ball Screws
Net Weight:
35.9KG
Gross Weight:
39KG
Package Size:
845mmx491mmx342mm
Spindle Motor:
500W Spindle Motor
Device Display:
3.5-inch IPS resistive color screen, touch (480 x 320 pixel resolution)
Compatible Software:
VCarve,Fusion360,EASEL,Carveco Maker
Firmware:
GRBL is open source and supports both CNC and laser (no firmware required)
Operating System:
Windows, Macos, Linux
Carving Layer Depth:
Non-metal 0.1mm-20mm | Metal 0.1mm-0.2mm
Program Support Formats:
.nc\.Gcode
Touch Screen Support:
Motion control, emergency stop, speed control, tool setting control, laser/CNC function switching, precision calibration
Performance:
110W Total | 15W In Standby Mode

Warranty Information

All the products supplied by Evelta are genuine and original. Please note that this product is non-returnable. It includes a 1-year supplier warranty from the date of delivery, covering manufacturing defects only. In the event of any manufacturing defects or issues, we will replace the defective part upon confirmation by our technical team. Refunds or full product replacements are not offered.

Description

Resources













Professional High-Speed Precision and Enhanced Safety with the CNC Router Machine TTC-6050 Commercial: Boost Your Productivity!

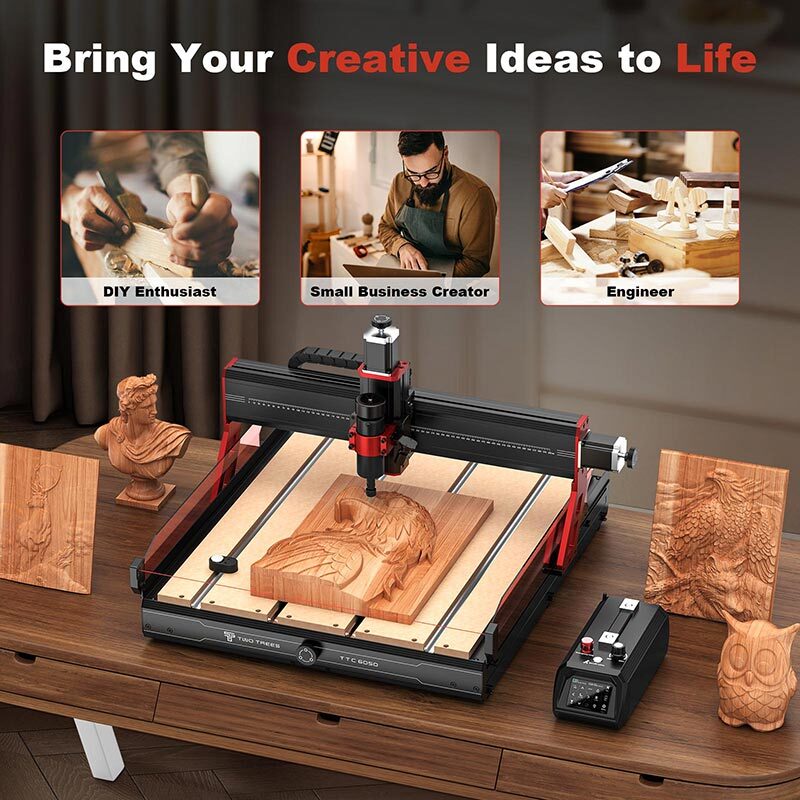

The CNC Router Machine TTC-6050 by TwoTrees offers precision, power, and versatility in a single robust machine. With a powerful 500W spindle that achieves speeds of up to 5000mm/min, this CNC router provides high-speed, stable performance, designed to meet the demands of professionals and DIY enthusiasts alike. Featuring a spacious 600mm x 500mm x 100mm work area, it enables you to tackle bigger and more complex projects, delivering deeper cuts and increased efficiency. Thanks to advanced infrared safety sensors, your workspace remains secure, detecting human presence to prevent accidents. Perfect for a range of materials including wood, metal, and acrylic, the TTC-6050 CNC router expands your creative possibilities with unmatched accuracy.

Elevate your workflow with this versatile machine that’s built for efficiency, safety, and easy maintenance. Whether for intricate carvings or larger projects, the TTC-6050 is engineered to reduce your carving time significantly, allowing you to complete more projects faster and with impeccable precision.

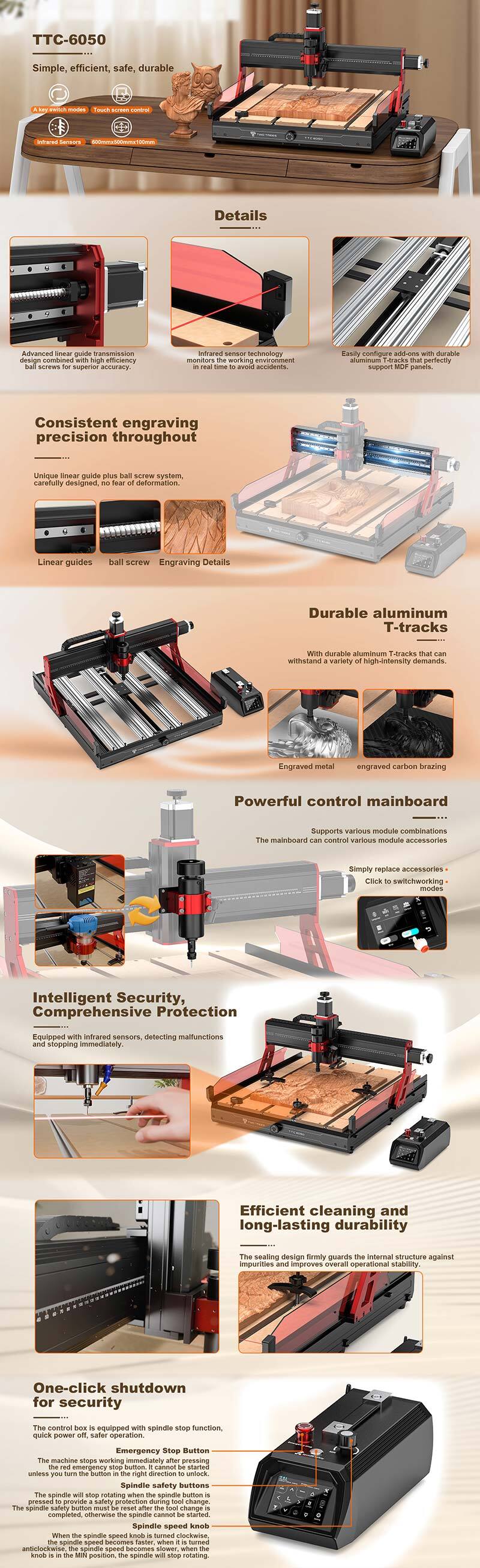

Features:
  • High-Speed Precision: 500W spindle reaches up to 5000mm/min, delivering 2.5x faster carving speeds compared to competitor models for maximum productivity.
  • Spacious Work Area: 600mm x 500mm x 100mm work area, providing 50% more workspace for large projects and intricate designs alike.
  • Enhanced Safety: Infrared sensors detect human presence, stopping operations to ensure a safe environment during use.
  • Material Compatibility: Supports wood, acrylic, metal, carbon fiber, and more, giving you the versatility for a wide range of projects.
  • Easy Maintenance: Hidden transmission components reduce debris impact, making it simple to clean and maintain.
  • T-Slot Hybrid Table: Ensures secure material holding, suitable for CNC machining or laser engraving with diverse material options.
  • Increased Efficiency: Achieves a 2.5x faster carving speed, allowing completion of projects in less time without compromising on detail.
Package Contents:
  • Machine components
  • Screws and fasteners
  • Instruction manual
  • Engraving material PP plate
  • Fixture Platen
  • Sharp cutterx10
  • Flat bottom milling cutter x1
  • Chamfering cutter x1
  • Data cable
  • TF card data
  • 500W spindle motor
