Capsule Slip Ring OD6.5mm 8Circuits 1A Wire Length 150mm

SENRING

No reviews yet Write a Review
SKU:
530-M065-08
MPN:
M065-08

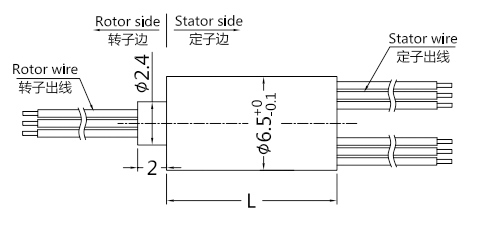

Capsule slip ring OD 6.5mm with 8 circuits and 150mm wire leads
Capsule Slip Ring OD 6.5mm features 8 circuits rated at 1A with gold contacts and 150mm wire leads, offering smooth 360° rotation for compact devices such as drones. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,062.00 inc. GST
₹900.00 ex. GST

Technical Specifications

Brand:
SENRING
Outer Diameter:
6.5mm
Number of Circuits:
8
Max Current Per Circuit:
1A
Max Voltage:
0~240VAC/VDC
Insulation Resistance:
≥300Mohm/300VDC
Dielectric Strength:
300VAC@50Hz,60s
Rotating Speed:
150RPM
Housing Material:
Plastic
Torque:
0.05N.m+0.01N.m/6 wire
Lead Wire:
AWG30 Silver-plated teflon
Lead Length:
150mm
IP Rating:
IP51
Operating Temperature:
-30 C~80 C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

Capsule Slip Ring OD 6.5mm – 8 Circuits, 1A, Wire Length 150mm

The Capsule Slip Ring OD 6.5mm (8 circuits, 1A) is a compact and efficient rotary electrical interface designed to transmit power and signals smoothly between rotating and stationary parts. With an ultra-small 6.5mm outer diameter, this slip ring is ideal for applications requiring miniaturised components, high-speed rotation and stable multi-channel transmission. Each of the 8 circuits supports up to 1A current, ensuring reliable performance for sensors, control systems, robotics, drones, CCTV cameras, medical devices and precision instruments. The 150mm pre-attached lead wires provide easy installation. It ensures low electrical noise, long service life and consistent signal integrity even in high-speed or continuous rotation environments.

Key Features

  • Ultra-Compact 6.5mm Design: Suitable for space-constrained applications, micro-mechanisms and precision devices.
  • 8 Independent Circuits: Each circuit supports up to 1A for stable power and signal transmission.
  • High-Quality Gold Contacts: Ensures low noise, low resistance, long lifespan and reliable performance.
  • 150mm Wire Leads: Pre-soldered flexible wires enable quick and easy installation.
  • Smooth 360 Rotation: Maintains uninterrupted electrical connection between rotating and fixed parts.
  • Versatile Application Use: Ideal for robotics, UAVs, CCTV systems, instrumentation, medical equipment and automation.
