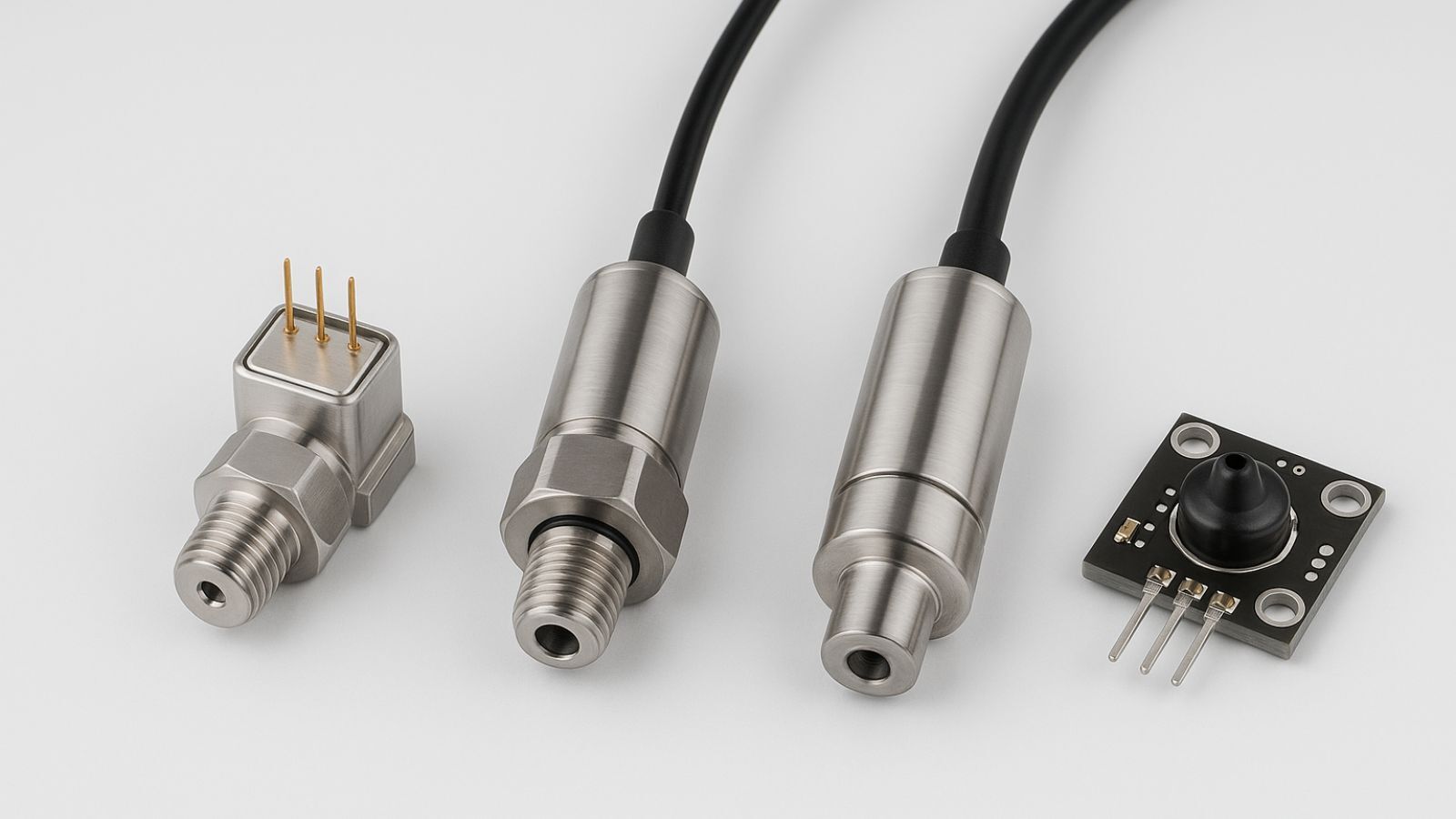

How Pressure Sensors Work: Expert Guide to Selection and Implementation

Published by Amitabh Verma on 28th Aug 2025

Pressure sensors help you save money on maintenance costs. The US Department of Energy reports 8-12% savings over preventive maintenance and up to 40% over reactive maintenance. These devices have become crucial in industries of all sizes because they help you collect live data on equipment conditions and prevent failures that can get pricey.

These sensors excel at measuring pressure across extreme ranges. They provide vital monitoring in natural gas pipelines at 200-1500 psi and wire-braided hydraulic hoses that handle up to 6000 psi. Specialized sensors in vacuum technology can measure even higher pressures - up to 10,000 psi. High-quality pressure sensors stand out with their quick response time of just one millisecond, which ensures continuous monitoring and control.

Choosing the right pressure sensor requires a solid grasp of different types and how they work. Common varieties include strain gage, piezoelectric, capacitive, and Bourdon tube sensors. Each type has its own way of working that fits specific uses. The Bourdon tube sensor, invented in 1849, remains a popular choice because it's simple and tough enough for high-pressure applications. These sensors come in different categories - absolute, gage, sealed gage, or differential pressure sensors - each serving unique industrial needs.

This piece explores pressure sensors' operation, types, selection factors, and best practices to help you pick the right measurement instrument for your needs.

Table of Contents:

Understanding the Pressure Sensor Working Principle

Pressure sensors work by turning mechanical force into measurable electrical signals. Applied pressure creates mechanical deformation in a sensing element that converts to electrical output through various methods. Three distinct mechanisms help modern pressure sensors achieve this conversion. Each mechanism has its own unique properties and applications.

Strain Gage Deformation and Resistance Change

Strain gage pressure sensors work on the piezoresistive principle where mechanical stress changes electrical resistance. Pressure deforms a diaphragm made of stainless steel or silicon. The attached strain gages experience proportional deformation. These gages' resistance changes as they stretch or compress. The simple principle states that resistance increases with length and decreases with cross-sectional area. Piezoresistive sensors use four strain gages in a Wheatstone bridge configuration to detect tiny resistance changes with high sensitivity.

Semiconductor materials are common in modern pressure sensors. The electron mobility in their crystalline structures changes under mechanical load to create a signal. MEMS sensors, or monolithic piezoresistive pressure transducers, have replaced traditional bonded metal strain gages. Silicon-based sensors' measurement uncertainty is as low as ±0.5%. This can improve to ±0.1% with proper temperature compensation and signal processing.

Capacitive Diaphragm Displacement Measurement

Capacitive pressure sensors detect changes in electrical capacitance from diaphragm movement. These sensors have two parallel conductive plates with a small gap between them. One plate acts as a flexible diaphragm. The distance between plates changes as pressure moves this diaphragm. This alters the capacitance according to the formula C=ε₀εᵣA/d. Here, ε₀ is the electric constant, εᵣ is the dielectric constant, A represents plate area, and d shows the distance between plates.

Typical sensors have capacitance from 50 to 100 pF, with pressure-induced changes of a few picofarads. Frequency-dependent circuits like oscillators or LC tank circuits measure this small change. Direct capacitance measurement is another option. These sensors are perfect for applications that need low power consumption and high sensitivity. Advanced designs can achieve sensitivities up to 0.0835 kPa⁻¹ and resolution below 50 Pa.

Piezoelectric Charge Generation under Stress

Piezoelectric pressure sensors use crystalline materials that create an electric charge under mechanical stress. The piezoelectric effect happens in materials like quartz crystals, certain ceramics, and engineered compounds such as lead zirconate titanate (PZT). These materials' positive and negative charge centers shift under pressure deformation. This creates an electrical potential that matches the applied force.

Piezoelectric sensors don't need external power for the sensing element. They generate electrical signals directly from mechanical deformation. The generated charge is in the picocoulomb range. These sensors need charge amplifiers to turn this tiny charge into a measurable voltage signal. They excel at measuring dynamic pressures and small pressure changes at high static pressures. Their response times can be as quick as 90 milliseconds.

Each pressure sensing technology brings its own advantages. Strain gage sensors deliver excellent linearity and accuracy across wide pressure ranges. Capacitive sensors provide superior sensitivity with low power operation. Piezoelectric sensors are best at measuring dynamic pressure changes with minimal deformation.

Signal Conditioning and Output Conversion in Pressure Sensors

Pressure sensors generate weak electrical signals that noise can easily affect. These signals need careful conditioning before they work in measurement systems. A piezoresistive pressure sensor's output might only reach 20 mV at full scale pressure. This tiny signal needs amplification and processing to create standardized outputs that industrial applications can use.

Wheatstone Bridge Circuit in Piezoresistive Sensors

Piezoresistive pressure sensors use four strain gages in a Wheatstone Bridge setup to detect small resistance changes. The bridge splits voltage so the output matches the applied pressure. The diaphragm's deformation under pressure makes two gage elements stretch while two others compress. This creates resistance changes. A typical bridge with 5V power might give just 4.0 mV/V/psi or about 20 mV total signal range at 100 kPa pressure.

The raw signal needs conditioning to fix these issues:

  • Offset errors - Bridge imbalance at zero pressure

  • Gain uncertainties - Sensitivity differences between sensors

  • Temperature drift - Output changes from temperature shifts

  • Common-mode voltage - High common-mode voltage with small differential signal

Signal conditioning circuits need instrumentation amplifiers to boost the differential signal and block common-mode voltage. New integrated signal conditioners offer programmable gain from 70 to 1,280 with 0.4 percent resolution. Temperature compensation becomes crucial here. Engineers use constant current power or digital trimming potentiometers to adjust offset and gain from -40°C to 125°C.

Modern signal conditioners include zero and span calibration, nonlinearity fixes, and filters to remove high-frequency noise. The original millivolt signal becomes a standard output—usually 0-5V, 0-10V, or 4-20mA—that industrial control systems can handle.

Analog-to-Digital Conversion for Microcontroller Integration

Digital systems need the conditioned analog signal converted to digital form. ADCs sample analog signals and create binary values for microcontrollers. The ADC's resolution sets measurement precision. An 8-bit ADC with 0-5V reference creates 255 steps (about 19.6 mV per step), while a 24-bit ADC offers much better precision.

Sampling rate matters too. It must follow Nyquist's theorem—sample at least twice the signal's highest frequency to avoid aliasing. The signal often needs filtering before the ADC to remove noise that could cause errors.

Key factors in choosing ADCs for pressure sensing:

  • Resolution - Better resolution means more precise measurements. Modern systems use 16-bit to 24-bit converters

  • Noise performance - Slower sampling often means less noise, down to 0.81µVRMS at 50 samples per second

  • Power consumption - Battery-powered devices need this most

To cite an instance, the MAX11254 is a 24-bit delta-sigma ADC with 6 channels. It delivers great performance using just 2.2mA power, making it perfect for accurate pressure readings. Microcontrollers can do more processing like linearization, digital filtering, and temperature compensation through software.

Output formats change based on needs—voltage (0-5V) for basic systems, current (4-20mA) for noise-resistant long-distance signals, or digital protocols like RS485 to connect directly with computers and resist interference better.

Materials and Methods: Building a Pressure Measurement Instrument

A good pressure measurement instrument needs the right materials and design to work accurately in different environments. The right housing materials and diaphragm parts are the foundations of how well a sensor performs. These choices determine how long it lasts and how well it measures pressure in different conditions.

Sensor Housing and Diaphragm Material Selection

The path to reliable pressure sensors starts with picking the best materials for housing and sensing elements. Modern pressure sensors use different housing materials that work best for specific jobs. Stainless steel (especially 17-4 PH) works great with hydraulic fluid, air, natural gas, and diesel fuel. 316L stainless steel handles hydrogen, chlorinated water, and various petroleum products better. Alloy 718 or Hastelloy C276 fights corrosion better in tough marine environments or when there's lots of H2S.

The choice of diaphragm material makes a big difference in how well sensors work and how long they last. Silicon diaphragms, between 5 and 200 microns thick, are super sensitive - about 100 times more than metal strain gages. The thickness affects the pressure range, but not in a straight line. Food and drug applications need special care to avoid contamination. That's why they use oil-filled sensors with special outer diaphragms that sit flush against vessel walls.

Rough environments need special diaphragm coatings. You can use Dymax® coating on stainless steel to resist wear, titanium nitride to prevent sticking to elastomers, or borofuse to handle both. When dealing with nasty stuff like fluoropolymers that eat through regular diaphragms, you need tough materials like Inconel or Hastelloy.

Temperature Compensation Techniques in Sensor Design

Temperature changes can really mess with sensor accuracy. That's why good compensation strategies matter. High-quality pressure sensors use either passive or active temperature compensation. Passive compensation means testing accuracy at different temperatures during manufacturing and using resistors in the sensor electronics to fix temperature errors. This works fine for linear temperature behavior but can't handle complex errors that bend the characteristic curve.

Active compensation is smarter. It uses dedicated temperature sensors to watch the environment all the time. There are two main ways to do this: one uses specific correction values and fills in the gaps between measured points, while the other uses complex equations from regression analysis. These methods adjust readings live to stay accurate between 10-60°C.

The materials you pick also help with temperature compensation. Materials that barely expand with heat and keep stable electrical properties across wide temperature ranges reduce temperature-related errors. Regular temperature calibration helps even more by fixing any drift over time.

Results and Discussion: Accuracy, Response Time, and Noise

A pressure sensor's suitability for specific applications depends on its performance characteristics. The accuracy specifications show how much measurements can deviate from true values. Modern precision instruments can achieve accuracy ratings up to 0.008% of IntelliScale. The sensor's accuracy degrades over time and its zero point drifts across months, which affects measurement reliability.

Response Time Standards for Piezoelectric vs Capacitive Sensors

The response time shows how quickly a sensor reaches a new output value after a pressure change. This key parameter measures the time needed for the output signal to reach 63.2% of the final value after a sudden full-scale pressure change. The total response time combines two parts: dead time (original delay before responding) and time constant (mechanical plus electronic response time).

Piezoelectric sensors show incredibly fast response capabilities. Some devices measure rise times as short as one millionth of a second. This speed makes them perfect for measuring pressure changes in explosions and other high-dynamic applications. Their rigid construction needs minimal deformation to generate output, which eliminates moving parts and improves durability.

Capacitive sensors provide response times around milliseconds—quick but not as fast as piezoelectric options. Modern MEMS-based capacitive sensors work faster, with some designs reaching 500 microseconds. These sensors work well for most industrial applications that need rapid but not extreme response times.

Noise Filtering in Industrial Environments

Industrial environments create substantial electrical noise that affects pressure sensor readings significantly. Motors, power lines, and radio transmitters are common noise sources. This interference causes signal distortion, reduced sensitivity, offset drift, signal loss, and crosstalk.

Effective noise filtering strategies include:

  • Shielding - Using conductive enclosures around sensors to block external electromagnetic fields

  • Digital filtering - Applying multi-order filters to eliminate noise from fans, blowers, or other sources

  • Signal averaging - Taking and averaging multiple readings to reduce random noise

  • Grounding - Providing safe discharge paths for unwanted signals

The right filtering setup can reduce sensor-induced noise by 10x or more, particularly in low-pressure applications. Systems prone to noise can see improvements of 100x to 1000x with advanced digital filtering techniques.

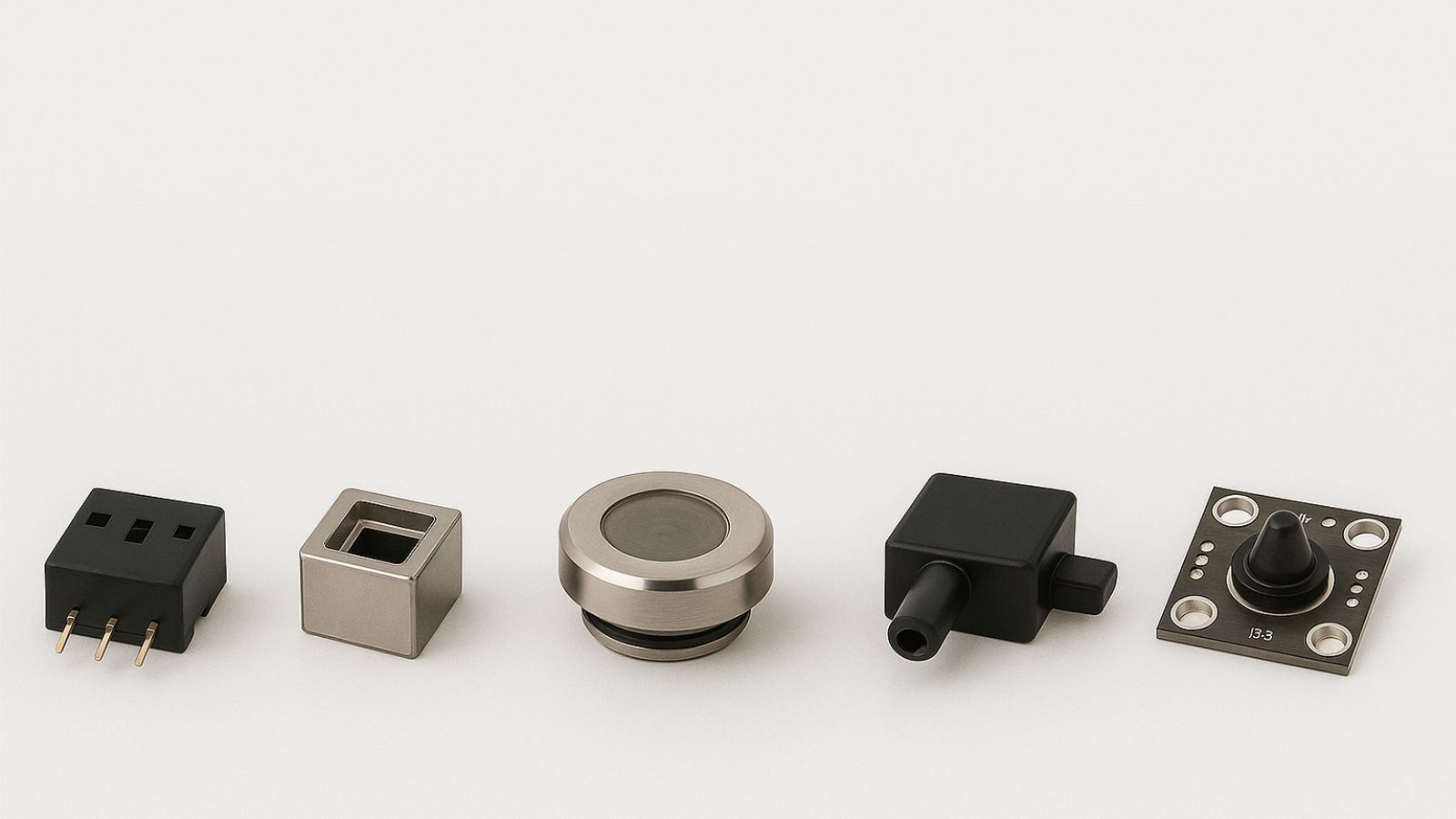

Limitations and Environmental Constraints in Sensor Deployment

You need a good understanding of operational constraints to choose the right pressure sensors for your application. These constraints define how the sensors work. Even the most reliable pressure measurement instruments have physical limitations. Going beyond these limits can degrade performance or cause complete failure. A clear picture of these constraints helps prevent system failures that can get pricey and gives reliable measurements in tough conditions.

Maximum Operating Pressure and Burst Ratings

Maximum operating pressure is the highest pressure a sensor can measure reliably while maintaining its performance. This is different from burst pressure, which is the point where the sensor fails completely. Proof pressure (or overpressure) sits between these two limits. It shows how much pressure a sensor can handle without permanent damage or calibration changes. Proof pressure usually ranges from 1.5 to 2 times the full-scale pressure range. A sensor with a 100 PSI range and a 2X overpressure rating can bounce back from pressures up to 200 PSI without damage.

Burst pressure goes much higher—usually 3 to 5 times the full-scale range. At this point, the sensing element physically breaks. When pressure exceeds the burst limit, process fluid leaks into surrounding areas and creates safety risks. Burst pressure tests destroy the sensors, so manufacturers test only sample units.

Temperature Range and Humidity Tolerance

Temperature affects sensor accuracy and life span by a lot. Specifications usually cover four areas: operating, storage, media, and compensated temperature ranges. Operating temperature shows the limits for the sensor housing's ambient temperature, usually -20°C to +80°C for standard pressure transmitters. Media temperature range runs wider from -30°C to +100°C and defines acceptable temperatures for the measured fluid.

Compensated temperature range tells you where temperature-related errors stay within defined limits. Temperature error grows up to three times higher outside this range. Sensors used in arctic conditions might need ranges from -40°C to +125°C.

Humidity tolerance typically runs from 0% to 95% RH, but condensation must not occur. Humidity hits capacitive sensors hardest. Water condensation on sensor surfaces changes dielectric properties and creates parasitic capacitances. Piezoresistive sensors handle humidity better but still face issues when measuring low pressures with high precision.

Conclusion

Pressure sensors reshape the scene of industrial operations by turning mechanical forces into useful data with precision. This piece explores the many mechanisms that power these vital devices. From piezoresistive strain gages and capacitive diaphragms to piezoelectric crystals, these components generate electrical charges under stress. Raw signals go through conditioning with Wheatstone bridge setups and analog-to-digital conversion to blend with modern control systems.

The right material choice shapes a sensor's performance. Specific alloys and coatings protect against corrosion, abrasion, and chemical breakdown. Temperature compensation methods, both passive and active, keep measurements accurate in different environments. Response times vary from milliseconds in capacitive sensors to microseconds in piezoelectric types, which helps match sensors to specific uses.

You need the full picture of your operational needs to pick the right pressure sensor. Start with the pressure range you need, then review factors like temperature extremes, humidity levels, and electromagnetic interference. The maximum overpressure conditions matter too - your chosen sensor should maintain a safe gap between operating pressure and burst rating.

Research shows that time spent on proper sensor selection is a great way to get better system reliability and measurement accuracy. The right housing materials, diaphragm designs, and signal processing features give you longer service life and less maintenance. This guides you toward less downtime and lower ownership costs throughout the equipment's life.

Note that pressure sensor technology moves faster every day. Traditional industrial sensors and smart, IoT-enabled devices become more alike as manufacturers add advanced diagnostics and remote monitoring. The principles and selection criteria in this piece will help you choose pressure measurement tools that work now and adapt to future needs.

FAQs

Q. How do pressure sensors convert mechanical force into electrical signals?

A. Pressure sensors use various mechanisms to convert mechanical force into electrical signals. Common methods include strain gage deformation, capacitive diaphragm displacement, and piezoelectric charge generation. These techniques allow sensors to measure pressure changes and provide accurate data for industrial applications.

Q. What factors should be considered when selecting a pressure sensor?

A. When choosing a pressure sensor, consider the pressure range requirements, environmental factors (temperature, humidity), material compatibility with the process media, accuracy needs, and potential overpressure conditions. Also, evaluate the sensor's response time and noise filtering capabilities to ensure it meets your specific application requirements.

Q. How do temperature variations affect pressure sensor accuracy?

A. Temperature variations can significantly impact pressure sensor accuracy. To address this, sensors employ temperature compensation techniques, either passive (using resistors) or active (with dedicated temperature sensors). These methods adjust pressure readings in real-time to maintain accuracy across specified temperature ranges, typically between 10-60°C.

Q. What is the difference between operating pressure and burst pressure in sensors?

A. Operating pressure is the highest pressure a sensor can reliably measure while maintaining specified performance. Burst pressure, significantly higher, is the point where catastrophic failure occurs. Between these is proof pressure (or overpressure), typically 1.5 to 2 times the full-scale range, which a sensor can withstand without permanent damage or calibration shift.

Q. How do pressure sensors handle noise in industrial environments?

A. Pressure sensors employ various noise filtering strategies in industrial settings. These include shielding to block external electromagnetic fields, digital filtering to eliminate noise from equipment, signal averaging to reduce random noise, and proper grounding. Effective implementation of these techniques can significantly reduce sensor-induced noise, improving measurement accuracy.
