Audio Driver Board for RDK X3 Development Board

Waveshare

No reviews yet Write a Review
SKU:
061-23898
MPN:
23898
Audio Driver Board for RDK X3 with 4-channel microphones for high-quality playback and recording
Quantity
Unit Price (ex. GST)
1 - 9
₹ 1,671.00
10 or above
₹ 1,604.16
Audio Driver Board for RDK X3 with 4 high-sensitivity microphones. Supports high-fidelity playback, multi-directional recording, and low-latency audio processing for AI, voice recognition, and embedded audio projects. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,971.78 inc. GST
₹1,671.00 ex. GST
9 people looking at this.

Technical Specifications

Brand:
Waveshare
Audio Encoding Chip:
ES7210
Control Interface:
I2C
ADC SNR:
102dB
Power Voltage:
3.3V
Audio Decoding Chip:
ES8156
Audio Interface:
I2S
DAC SNR:
110dB
Dimensions:
65×56mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

www.waveshare.com/wiki/Audio_Driver_HAT

Audio Driver Board for RDK X3 Development Board, Supports Audio Playback And Recording, Stereo Encoding / Decoding, Onboard Headphone Jack And 4-Ch Microphones

The Audio Driver Board for RDK X3 is engineered to deliver exceptional audio playback and recording performance, making it a versatile choice for AI, voice recognition, and embedded system applications. Designed with integrated 4-channel microphones, it supports multi-directional audio capture, ensuring clear and accurate sound acquisition for advanced audio processing tasks. This board is fully compatible with the RDK X3 platform, offering seamless connectivity and reliable performance for developers working on intelligent audio projects. Its robust design and premium audio components make it suitable for smart assistants, conference systems, robotics, and other interactive voice-enabled solutions.

Key Features

  • Multi-Channel Audio Input: Equipped with 4 high-sensitivity microphones for accurate 360° audio capture.

  • High-Fidelity Playback: Supports high-quality audio output for immersive sound reproduction.

  • RDK X3 Compatibility: Optimised for seamless integration with the RDK X3 development platform.

  • Full-Duplex Audio Processing: Enables simultaneous audio recording and playback for interactive applications.

  • Low Latency & High SNR: Delivers clear sound with minimal delay and low noise interference.

  • Versatile Applications: Suitable for AI assistants, voice-controlled systems, conferencing, and robotics.

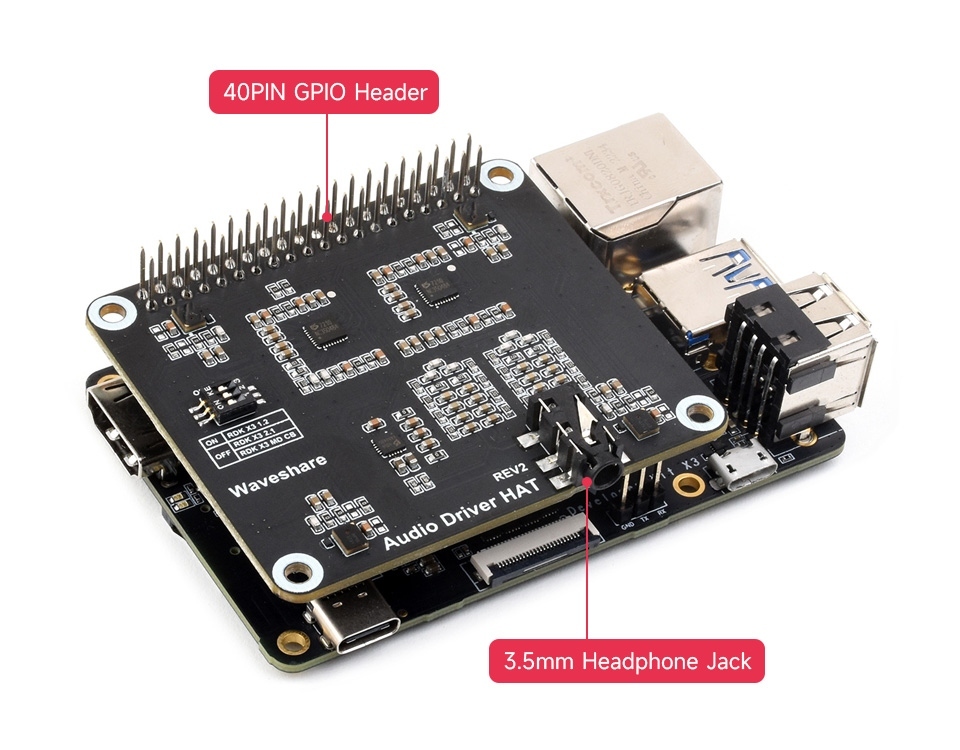

Audio Driver Board For RDK X3

Supports Audio Playback And Recording, Stereo Encoding / Decoding

Suitable For RDK X3 Development Board

Expands Multiple Audio Functions For RDK X3, Suitable For Applications Requiring Audio Functionality

 For Reference Only, the RDK X3 is NOT included.

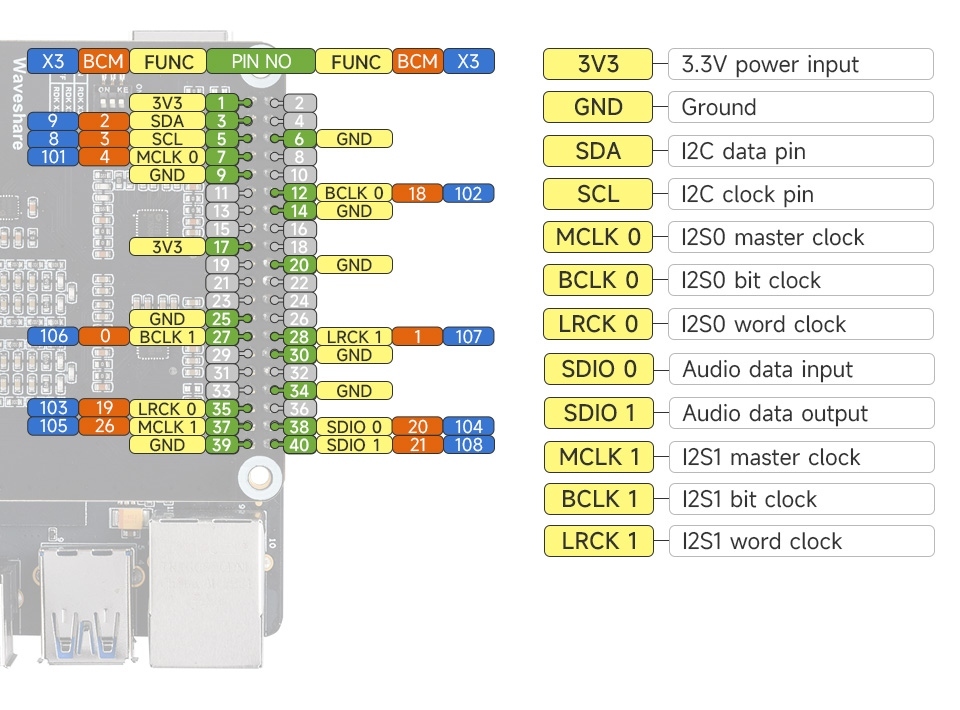

Pinout Definition

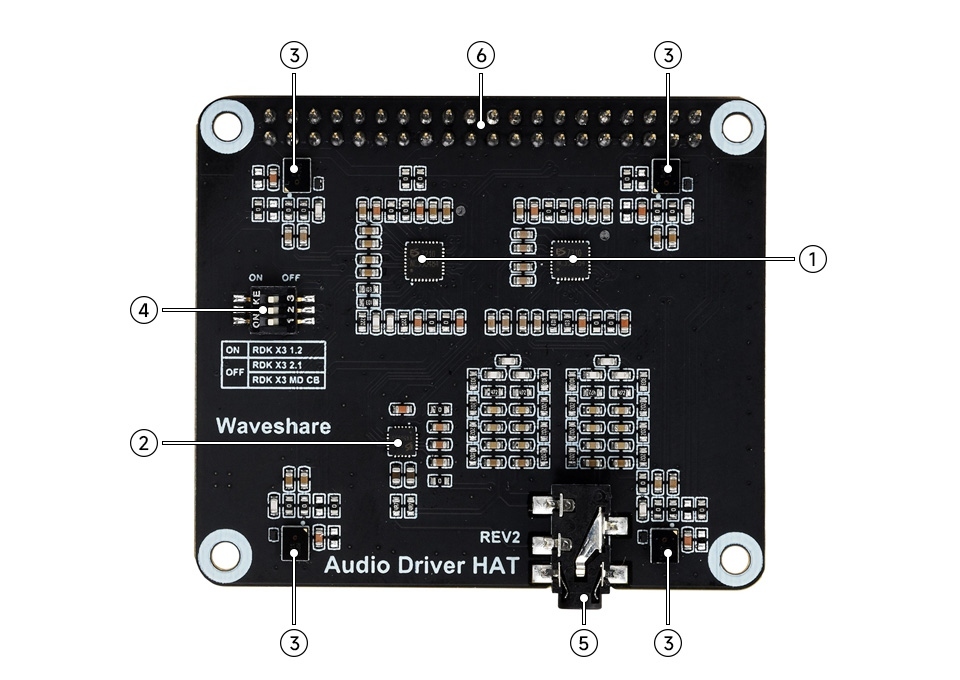

What's On Board

  1. ES7210 audio encoding chip
  2. ES8156 audio decoding chip
  3. High-quality MEMS silicon microphone × 4
  4. DIP switch
    for compatibility with RDK X3 V1.2 / V2.1 and RDK X3 MD
  5. 3.5mm standard headphone jack
  6. RDK X3 40PIN GPIO header

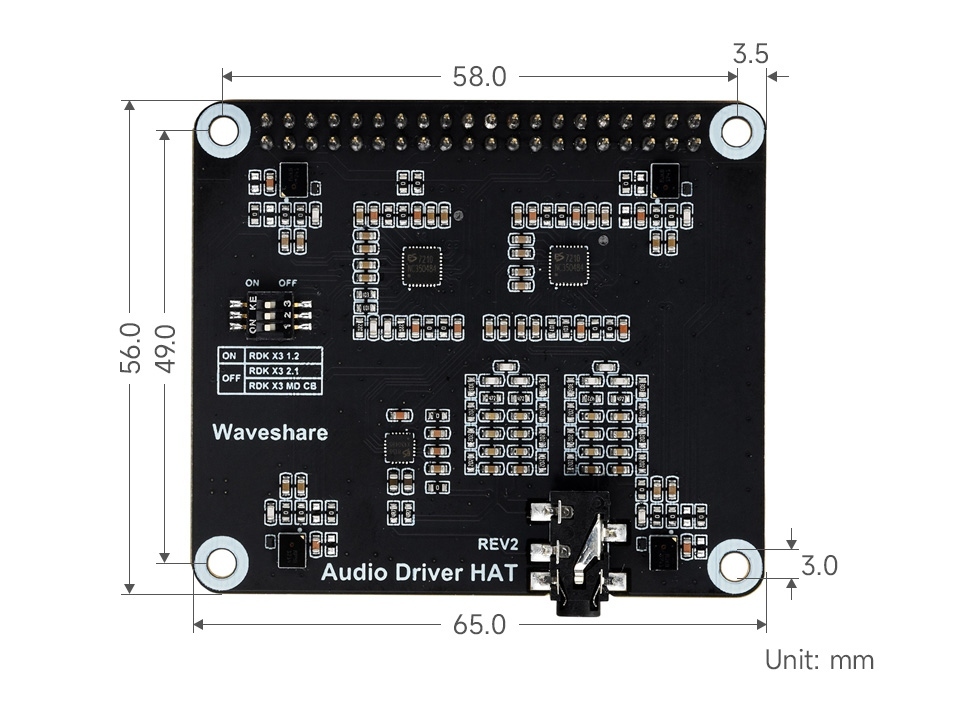

Dimensions

Package Content:

Audio Driver HAT x1
