Technical Specifications
Brand:
Diodes Incorporated

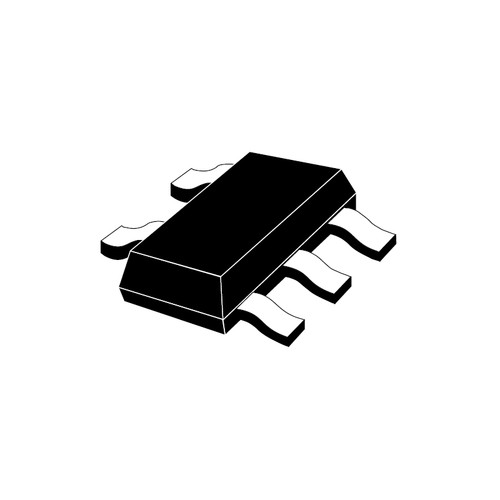

Case/Package:
SOT-23-5
Mount:
Surface Mount
Number of Pins:
5
Number of Terminals:
5
Weight:
29.993795 mg
Dropout Voltage:
360 mV
Max Input Voltage:
24 V
Max Junction Temperature (Tj):
125 C
Max Operating Temperature:
125 C
Max Output Current:
250 mA
Max Supply Voltage:
24 V
Min Input Voltage:
2.3 V
Min Operating Temperature:
-40 C
Min Supply Voltage:
2.6 V
Number of Channels:
1
Number of Circuits:
1
Number of Outputs:
1
Number of Regulators:
1
Output Current:
200 mA
Output Type:
Adjustable
Output Voltage:
22 V
Packaging:
Tape & Reel (TR)
Polarity:
Positive
Power Supply Rejection Ratio (PSRR):
60 dB
Quiescent Current:
50 uA
Reference Voltage:
1.24 V
Height:
1.4 mm
Height - Seated (Max):
1.45 mm
Length:
2.92 mm
Terminal Pitch:
950 um
Width:
1.6 mm
