Technical Specifications

Brand:

DYP

Product Type:

Ultrasonic Ranging Sensor

Series:

A25

Sensing Method:

ultrasonic

Probe Type:

Closed Waterproof Bistatic Probe

Waterproof Rating:

IP67

Measuring Range:

3 cm - 200 cm

Blind Zone:

3 cm

TTL-Level Switching Output:

3.3 V

Resolution:

Millimetre Level

Output Interface Options:

UART Automatic, UART Controlled

Working Voltage:

3.3 V - 5 V DC

Structure Type:

Reflective

Working Current:

Lower Than 8 mA At 12 V DC

Flat Object Measurement Accuracy:

1 Plus S x 0.5%

Standby Current:

Lower Than 10 uA

Measurement Accuracy:

+- 1 Plus S x 0.3% cm

Operating Temperature:

-15 C ~ +60 C

Fastest Data Output Time:

8 ms

Noise-Reduction Levels:

Default Baud-Rate:

115200

Applications:

Outdoor Robotics, Obstacle Avoidance, Automatic-Control Systems

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

A25 Datasheet

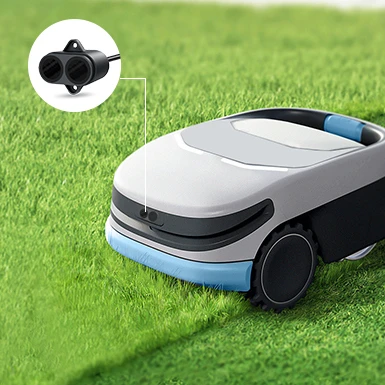

DYP Sensor A25 IP67 Waterproof Dual-Angle Ultrasonic Ranging Sensor 3-200 cm For Lawn-Mower Robots And Outdoor Obstacle Detection

The DYP Sensor A25 IP67 waterproof dual-angle ultrasonic ranging sensor is designed for reliable obstacle detection in outdoor automatic-control applications, especially lawn-mower robots. It measures distances from 3 cm to 200 cm and helps detect obstacles while reducing interference from grass, weeds, motor noise, and environmental acoustic noise.

Built with a closed ultrasonic transducer and integrated potting structure, the A25 sensor offers strong weather-resistance for outdoor use. Its compact PVC housing supports IP67 waterproof protection, making it well-suited for rain-prone and dusty environments. The sensor also includes intelligent acoustic-wave processing, continuously-variable gain, real-time background calibration, and noise-suppression algorithms for stable distance readings.

This ultrasonic ranging sensor supports UART automatic-output and UART controlled-output modes. It operates from a wide 3.3 V to 12 V supply and provides millimetre-level resolution, fast ms-level response, configurable range settings, and adjustable baud rates. Internal metal shielding helps reduce high-intensity motor interference, making it suitable for robotics, automation, smart outdoor equipment, and battery-powered systems.

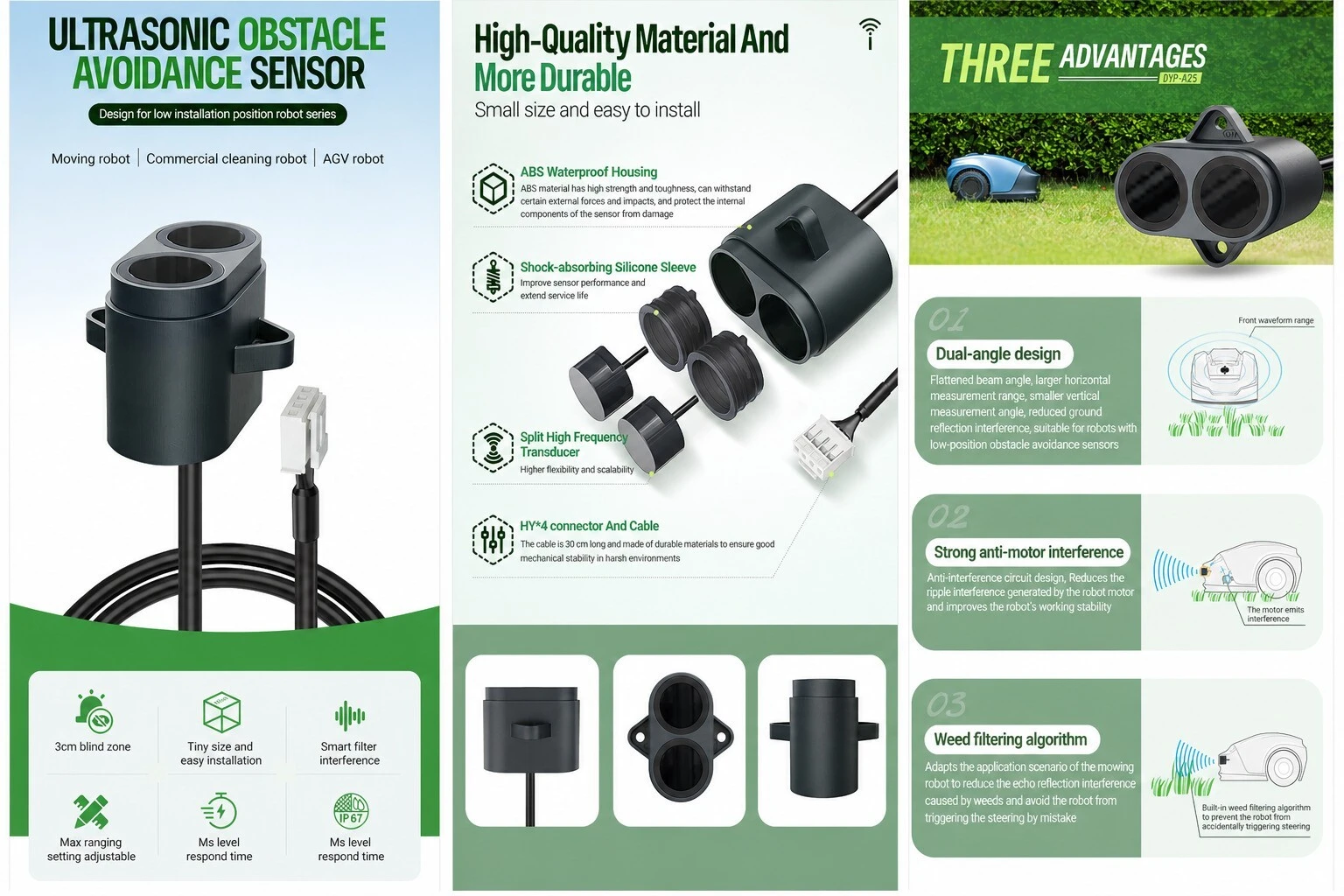

Key Features

Waterproof Outdoor Design: IP67-rated structure with closed transducer and integrated potting for reliable outdoor operation.
3-200 cm Ranging Distance: Measures short-to-medium distances with a 3 cm standard blind spot.
Dual-Angle Ultrasonic Detection: Suitable for obstacle detection in lawn-mower robots and outdoor automation systems.
Wide Voltage Support: Works with 3.3 V to 12 V power supplies for flexible system integration.
Multiple UART Output Modes: Supports UART automatic-output and UART controlled-output with the same functional performance.
Adjustable Baud Rate: Default 115200 bps and configurable to 4800, 9600, 14400, 19200, 38400, 57600, and 76800 bps.
Fast Response Time: Data output time can be as fast as 8 ms for real-time distance detection.
Noise-Reduction Function: Built-in 5-level noise-reduction setting supports battery power, USB power, switching power, and high-noise power environments.
Intelligent Acoustic-Wave Processing: Filters interfering acoustic waves and improves accuracy by up to 70% in same-frequency interference conditions at 1 m.
Motor-Interference Resistance: Internal metal shield helps resist high-intensity motor interference.
Wide Operating Temperature: Designed for operation from -15C to +60C.
ESD Protection: Input and output interfaces include electrostatic-protection devices compliant with IEC61000-4-2.
