Technical Specifications

Brand:

DYP

Product Type:

Waterproof Ultrasonic Distance Sensor

Series:

A02

Sensing Method:

Ultrasonic

Probe Type:

Closed Waterproof Bistatic Probe

Waterproof Rating:

IP67

Measuring Range:

3 cm - 450 cm

Blind Zone:

3 cm

Ultrasonic Frequency:

40 kHz

Resolution:

Millimetre-Level

Output Interface Options:

UART Automatic, UART Controlled, PWM Pulse-Width, Switch, RS485

Working Voltage:

3.3 V - 5 V DC

RS485 Working Voltage:

5 V - 24 V DC

Working Current:

Up To 8 mA

RS485 Working Current:

Up To 15 mA

Standby Current:

Less Than 5 uA

Measurement Accuracy:

+- 1 Plus S x 0.3% cm

Operating Temperature:

-15 C ~ +60 C

Housing Material:

PVC

Compliance:

RoHS

Anti-Static Standard:

IEC61000-4-2

Recommended Applications:

Robot Obstacle-Avoidance, Parking Management, Object-Proximity Detection, Presence Awareness, Automatic Control

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

DYP Sensor A02 IP67 Waterproof Ultrasonic Distance Sensor With 3 cm Blind Zone For Robot Obstacle-Avoidance, Liquid Level And Parking Applications

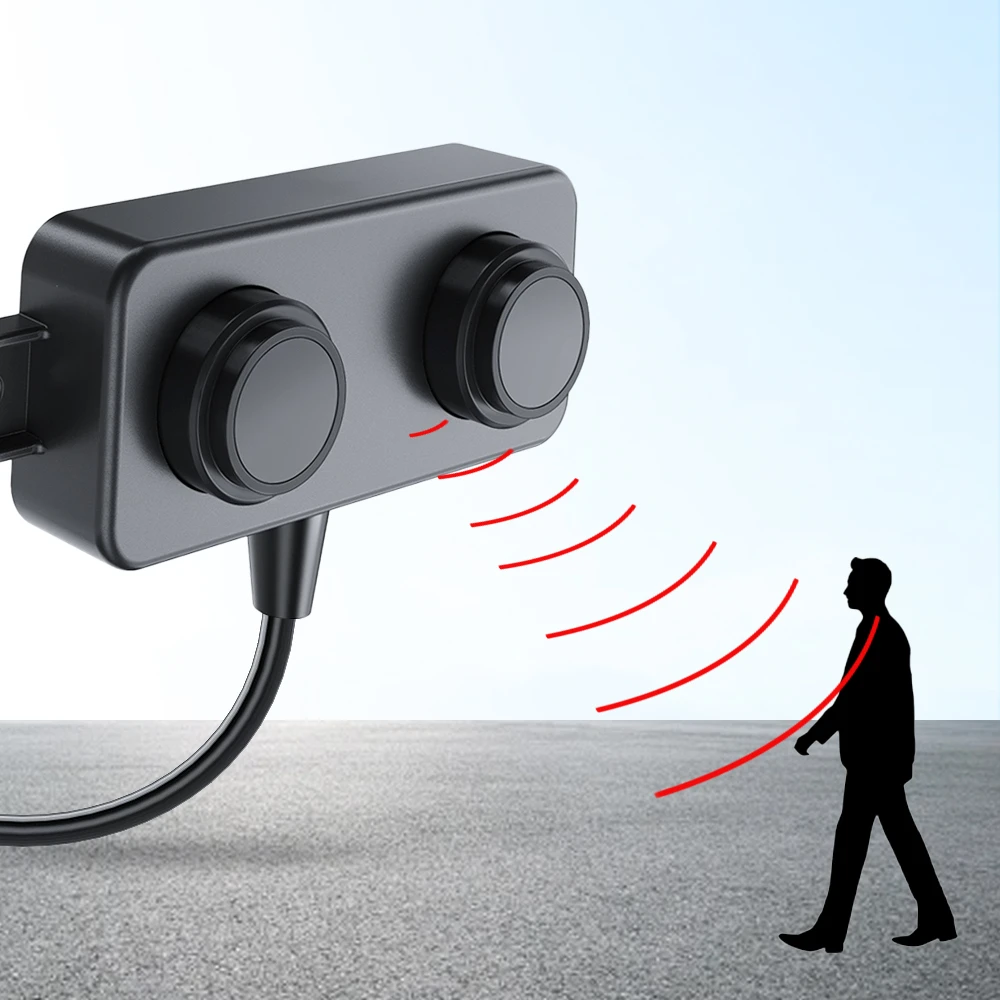

The DYP Sensor A02 IP67 waterproof ultrasonic distance sensor is designed for stable non-contact distance measurement in wet, dusty, and harsh environments. It uses a closed waterproof bistatic probe and compact PVC housing, making it well-suited for outdoor sensing, robot obstacle-avoidance, parking-management, object-proximity, and automatic-control applications.

With a 3 cm small blind zone and 3 cm - 450 cm measuring range, this ultrasonic sensor supports reliable short-range and mid-range detection. The 40 kHz ultrasonic sensing element, internal temperature-compensation function, real-time background calibration, and noise-suppression algorithms help deliver stable distance-value output with millimetre-level resolution.

The A02 series supports multiple output-interface options, including UART automatic output, UART controlled output, PWM pulse-width output, switch output, and RS485 output. Its low-power design, anti-static protection, and wide operating-temperature range make it suitable for commercial-grade embedded sensing and automation projects.

Key Features

IP67 Waterproof Probe: Closed waterproof bistatic probe supports operation in wet, dusty, and harsh environments

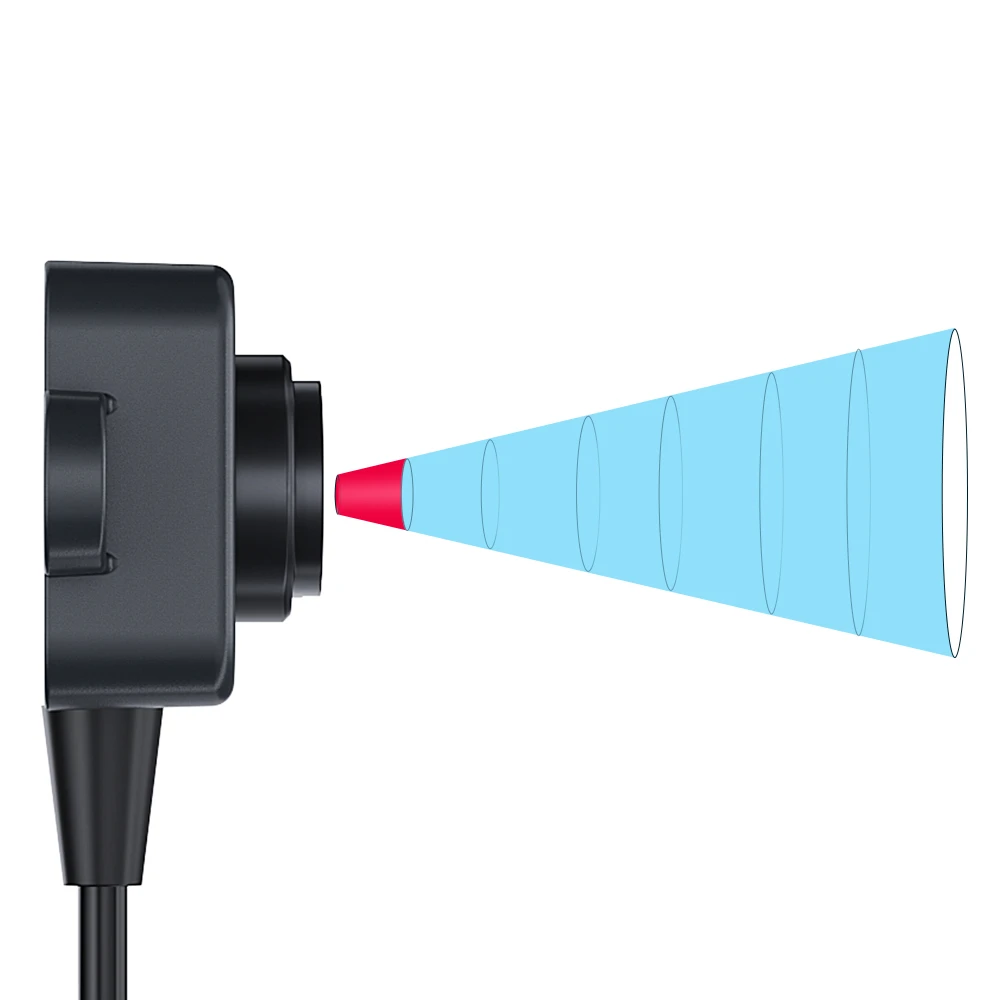

3 cm Small Blind Zone: Suitable for close-range object detection and compact sensing installations
3 cm To 450 cm Measuring Range: Supports reliable distance measurement for robotics, parking, and proximity sensing
40 kHz Ultrasonic Sensing: Provides non-contact measurement for object detection and presence-awareness applications
Multiple Output Interfaces: Supports UART automatic, UART controlled, PWM pulse-width, switch, and RS485 output options
Low-Power Operation: Standby current is less than 5 uA for power-sensitive systems
Internal Temperature Compensation: Helps improve distance-measurement consistency across changing conditions
Strong Anti-Interference Ability: Noise-suppression and background-calibration algorithms reduce clutter and false readings
Wide Temperature Range: Operates from -15 C - +60 C for varied field-use conditions
Commercial-Grade Module: Designed for stable performance in robot obstacle-avoidance, parking-management, and automatic-control systems
