7Semi EC200G-CN 4G/LTE Cat-1 GNSS Nano Industrial Modem

7Semi

No reviews yet Write a Review
SKU:
004-CM-10144
MPN:
CM-10144
7Semi EC200G CN LTE Cat 1 GNSS nano industrial modem with USB UART ports and FPC antenna
Compact LTE Cat 1 GNSS industrial modem with USB and UART interfaces wide voltage input multi GNSS support and FPC antenna for IoT M2M and automation applications View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,528.10 inc. GST
₹1,295.00 ex. GST
7 people looking at this.

Technical Specifications

Brand:
7Semi
Module Used:
Quectel EC200G-CN
LTE Category:
LTE Cat 1 bis
Downlink/Uplink Speed:
10 Mbps / 5 Mbps
LTE-FDD Bands:
B1, B3, B5, B8
LTE-TDD Bands:
B34, B38, B39, B40, B41
GNSS Support:
GPS, GLONASS, BeiDou, Galileo, QZSS
Interfaces:
micro-USB, UART
Power Supply:
5–26 V DC, 5V via USB
SIM Slot:
Nano-SIM
Antenna Type:
FPC antenna (52 × 24 mm), IPEX (u.FL) connector
Driver Compatibility:
Windows, Linux, Android
Applications:
IoT, M2M, telemetry, smart metering, POS, automation, smart tracking

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

7Semi EC200G CN 4G LTE Cat 1 GNSS Nano Industrial Modem for IoT and Industrial Connectivity

The 7Semi EC200G CN LTE 4G GNSS Nano Industrial Modem provides stable data connectivity for IoT M2M and industrial automation applications. It is built around the Quectel EC200G CN module and delivers reliable LTE Cat 1 network performance along with accurate multi GNSS positioning. Its compact rugged housing and broad software compatibility make it suitable for embedded systems gateways industrial controllers and PC based applications.

Its dual interface design with micro USB and UART enables flexible system integration while the wide input voltage range supports use in diverse field environments. The modem includes a high gain FPC antenna with IPEX connector for optimal signal performance. With multi GNSS capability firmware over the air support and industrial grade construction this modem fits deployment needs in smart metering fleet tracking telemetry remote monitoring and smart infrastructure systems.

Key Features

  • High speed LTE performance Supports LTE Cat 1 connectivity with dependable uplink and downlink data rates

  • Dual interface connectivity micro USB and UART interfaces for flexible system integration

  • Multi GNSS tracking Supports GPS GLONASS BeiDou Galileo and QZSS

  • Wide voltage input Operates from 5 to 26 V DC for industrial and field deployments

  • Included FPC antenna Compact antenna with IPEX connector and adhesive mounting

  • Wide band support Supports LTE FDD bands B1 B3 B5 B8 and LTE TDD bands B34 B38 B39 B40 B41

  • Cross platform compatibility USB drivers available for Windows Linux and Android

  • Industrial design Metallic enclosure with improved durability and thermal performance

  • FOTA capability Supports remote firmware updates

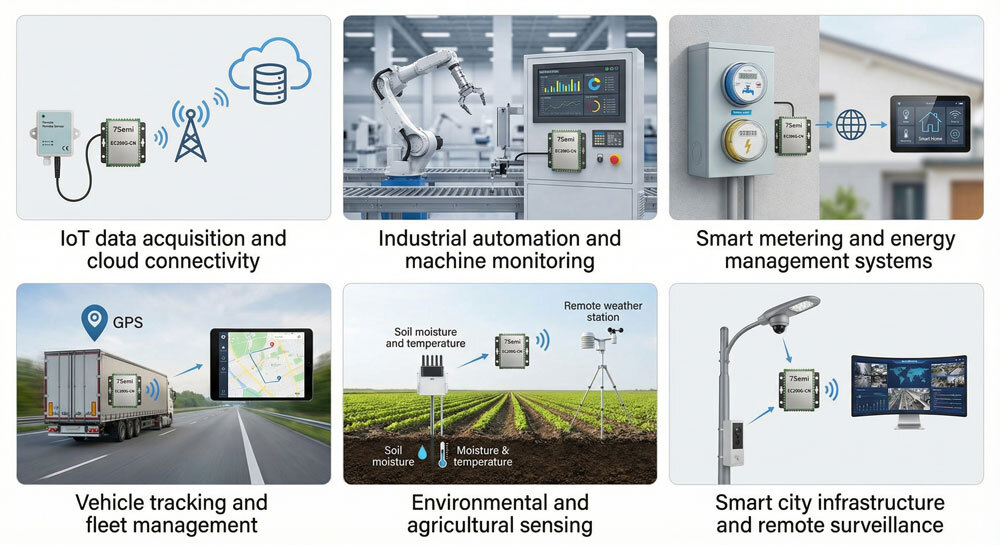

Applications
