7.0 inch 800x480 RS232 HMI LCD Display Capacitive Touch Flash 16MB UART Industrial Grade

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480T070_05WTC
MPN:
DMG80480T070_05WTC
DMG80480T070_05WTC 7 inch industrial smart HMI TFT display with capacitive touch
7.0-inch industrial smart HMI display with 800×480 TFT LCD, capacitive touch, DGUS II platform, T5L0 dual-core ASIC, wide 9–36 V input, and conformal coating. Ideal for industrial control and automation interfaces. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,748.47 inc. GST
₹3,176.67 ex. GST
3 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
7.0 inch
Resolution:
800x480
LCD Type:
TN-TFT
Viewing Angle (L/R/U/D):
70 / 70 / 50 / 70
Brightness:
250 nits
Touch Type:
Capacitive
Rated Power:
5W
Operating Voltage:
9~36V, typical value of 12V
Recommended Power Supply:
12V 1A DC
Flash:
16 MB
Interface:
UART2, UART4 (TTL/CMOS or RS232)
Baud Rate:
3,150 ~ 3,225,600 bps
Operating Temperature:
-20 C to+70 C
Storage Temperature:
-30 C to+80 C
Operating Humidity:
10%–90% RH
Dimensions:
154.08mm (W)x85.92mm (H)
Display Panel:
TN-TFT LCD
Display Type:
HMI

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

7.0 Inch Industrial Smart TFT HMI Display with Capacitive Touch and DGUS II Platform

The DMG80480T070_05WTC is an industrial-grade 7.0-inch smart HMI display from DWIN Technology, built around the T5L0 ASIC and running the DGUS II human–machine interface platform. It integrates display, touch control, processing, and communication into a single module, eliminating the need for an external MCU for UI handling. With an 800×480 resolution TN-TFT LCD and reliable capacitive touch panel, this smart display is designed for stable performance in industrial and embedded environments.

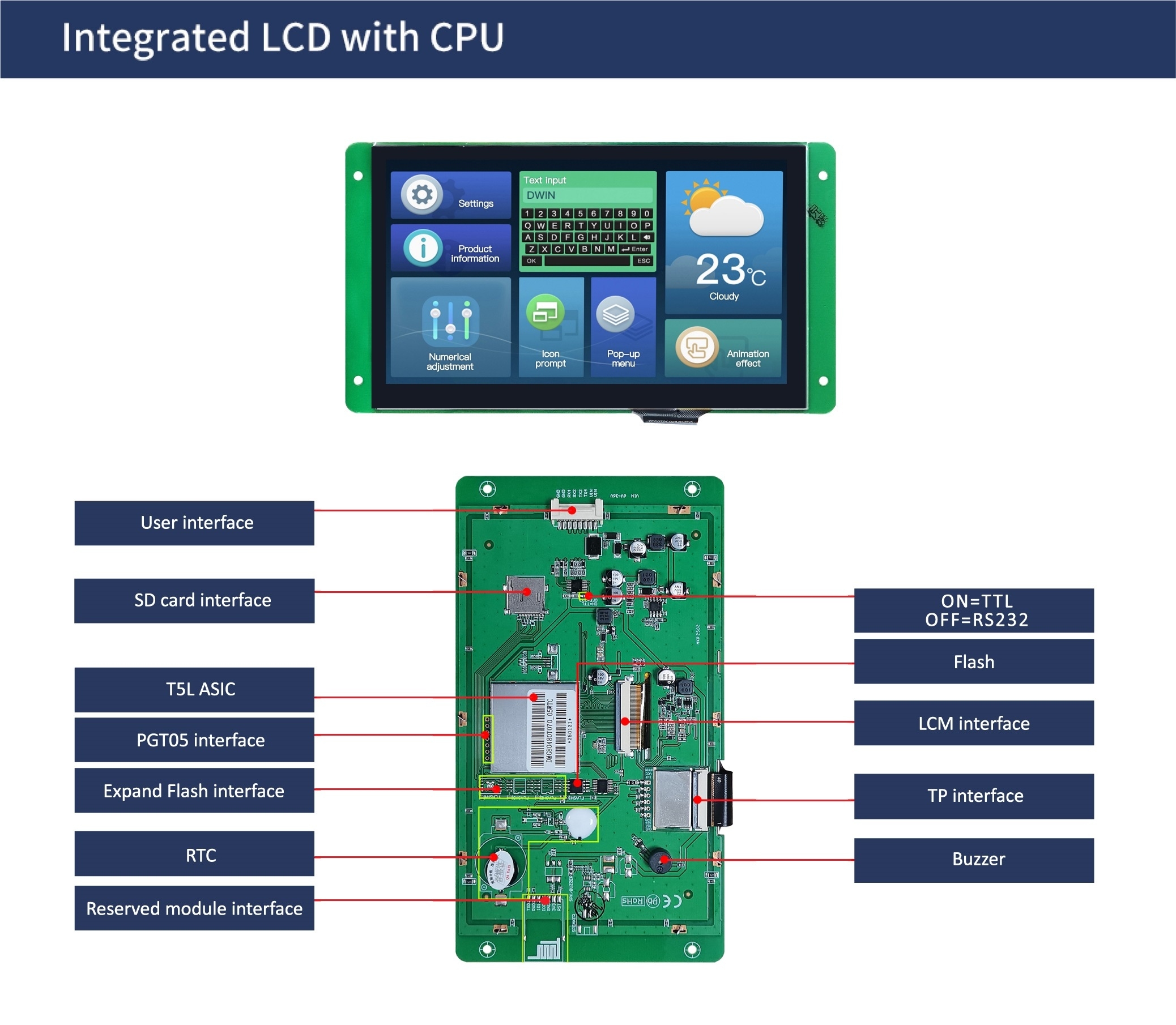

Designed for long-term reliability, the module supports a wide operating voltage range of 9–36 V and includes conformal coating for enhanced protection against moisture, dust, and contaminants. The dual-core 8051 architecture separates GUI processing from application logic, ensuring smooth graphics performance and responsive touch interaction. With onboard flash storage, RTC, buzzer, SD card support, and serial communication interfaces, the DMG80480T070_05WTC is well-suited for industrial control panels, automation systems, medical devices, and intelligent instrumentation.

Key Features:

  • 7.0 Inch TFT Display: 800×480 resolution TN-TFT LCD with LED backlight
  • Capacitive Touch Panel: G+G structure with ≥6H tempered glass surface hardness
  • DGUS II HMI Platform: Runs directly on T5L0 ASIC without external MCU
  • Dual-Core 8051 Architecture: Dedicated GUI and application processing cores
  • Wide Input Voltage: Operates from 9 V to 36 V DC (12 V typical)
  • Industrial Protection: Conformal coating for improved environmental resistance
  • Onboard Storage: 16 MB NOR Flash for fonts, images, icons, and audio
  • Serial Communication: TTL/CMOS or RS232 selectable UART interfaces
  • RTC & Buzzer: Super-capacitor backed RTC and onboard passive buzzer
  • Expansion Ready: Supports Wi-Fi, USB download modules, and external Flash

Applications

  • Industrial HMI Panels: Machine control and monitoring
  • Automation Systems: PLC and controller interfaces
  • Medical and Laboratory Equipment: Touch-based user interaction
  • Energy and Power Systems: Display and data visualisation
  • Embedded Control Devices: Smart instrumentation and terminals
