High Resolution Capacitive Touch Display for Raspberry Pi with Direct DSI Connectivity
This 5.0 inch capacitive touch LCD screen is designed specifically for Raspberry Pi systems requiring a compact high clarity display with responsive touch control. With an 800 by 480 resolution it delivers sharp visuals suitable for graphical interfaces dashboards and multimedia applications while maintaining low power consumption.
The display connects directly through the Raspberry Pi DSI interface enabling stable high speed signal transmission without additional driver boards. It is ideal for embedded projects portable systems industrial HMIs and DIY Raspberry Pi builds where reliable touch interaction and clean integration are required.
Key Features
- Clear High Resolution Display
Eight hundred by four hundred eighty resolution provides sharp images and readable text
- Capacitive Touch Interface
Supports smooth multi touch operation with high responsiveness
- DSI Interface Compatibility
Direct connection to Raspberry Pi DSI port for stable video and touch performance
- Compact Five Inch Form Factor
Ideal for space constrained embedded and portable applications
- Optimised for Raspberry Pi
Designed for seamless integration with Raspberry Pi operating systems
Connection Examples

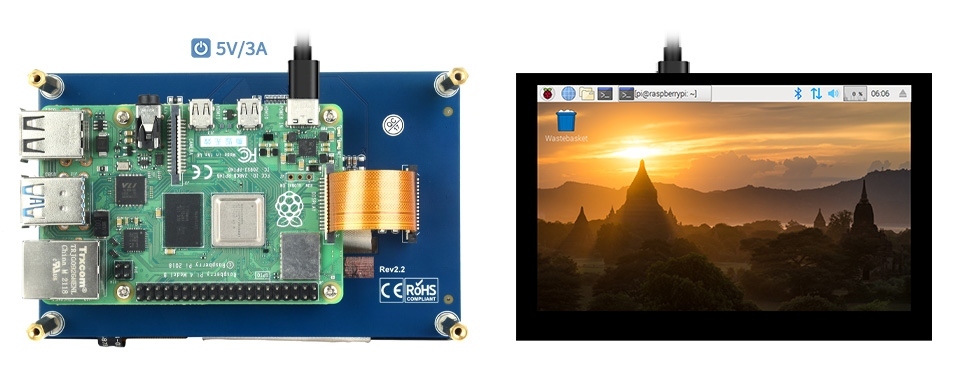

Working With Raspberry Pi 5
Working with Raspberry Pi 4

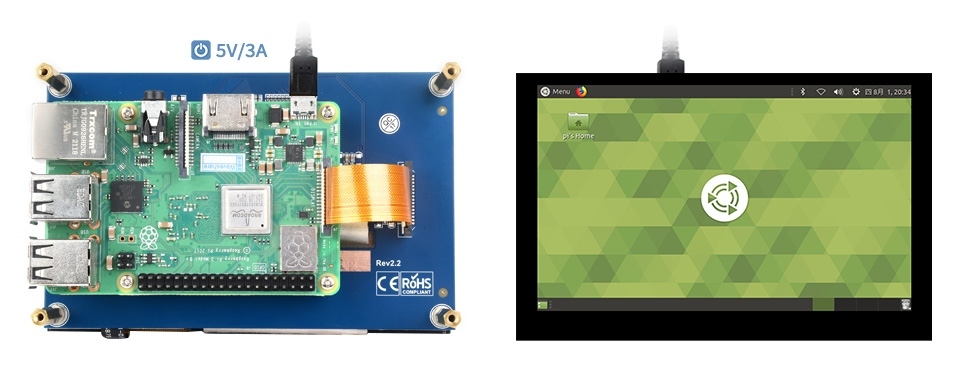

Working with Raspberry Pi 3B+

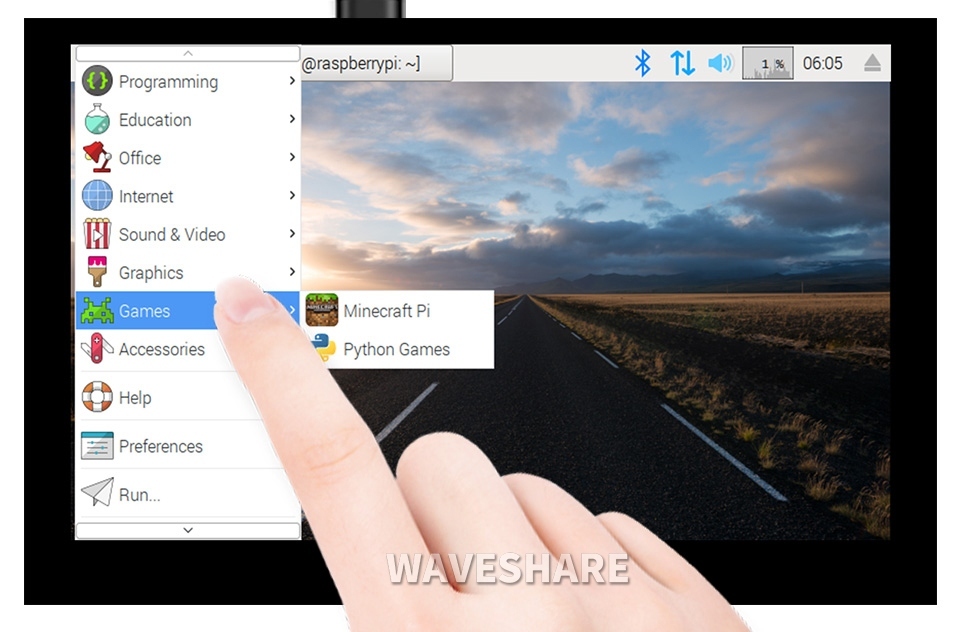

Touch Control

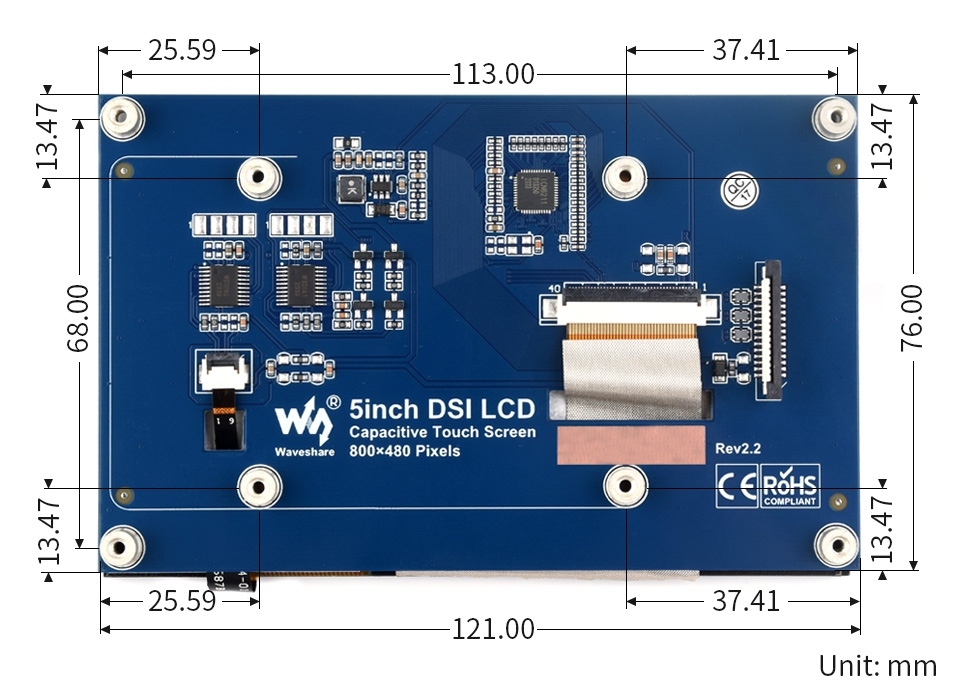

Dimensions
Package Content:
- 5inch DSI LCDx1
- FPC 15PIN 1.0 pitch 50mm (opposite sides)x1
- DSI-Cable-12cmx1
- FPC 15PIN 1.0 pitch 160mm (opposite sides)x1
- Screws packx1
