4.0 Inch 480x800 HMI LCD Display Capacitive Touch, 16MB Flash, Buzzer, RTC, SD Interface, TTL/RS232 (Industrial Grade)

DWIN

No reviews yet Write a Review
SKU:
353-DMG80480T040_01WTC
MPN:
DMG80480T040_01WTC
4.0 inch HMI LCD Display with Capacitive Touch Screen | Industrial Grade | DWIN
Quantity
Unit Price (ex. GST)
1 - 9
₹ 3,099.00
10 or above
₹ 2,975.04
DWIN 4.0" HMI LCD display: 480x800 resolution, capacitive touch, 16MB Flash, SD card, industrial grade. Ideal for HMI applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,656.82 inc. GST
₹3,099.00 ex. GST

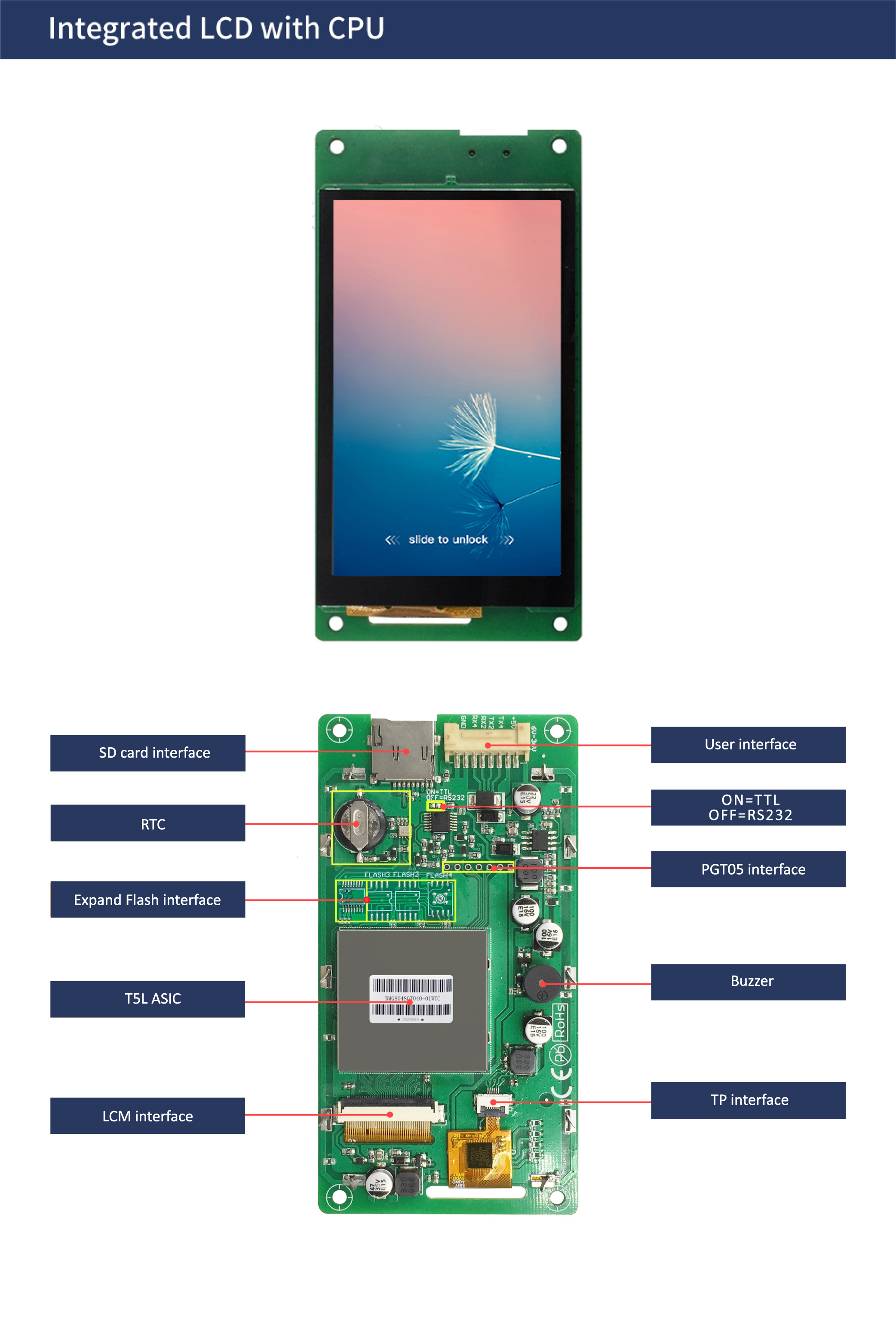

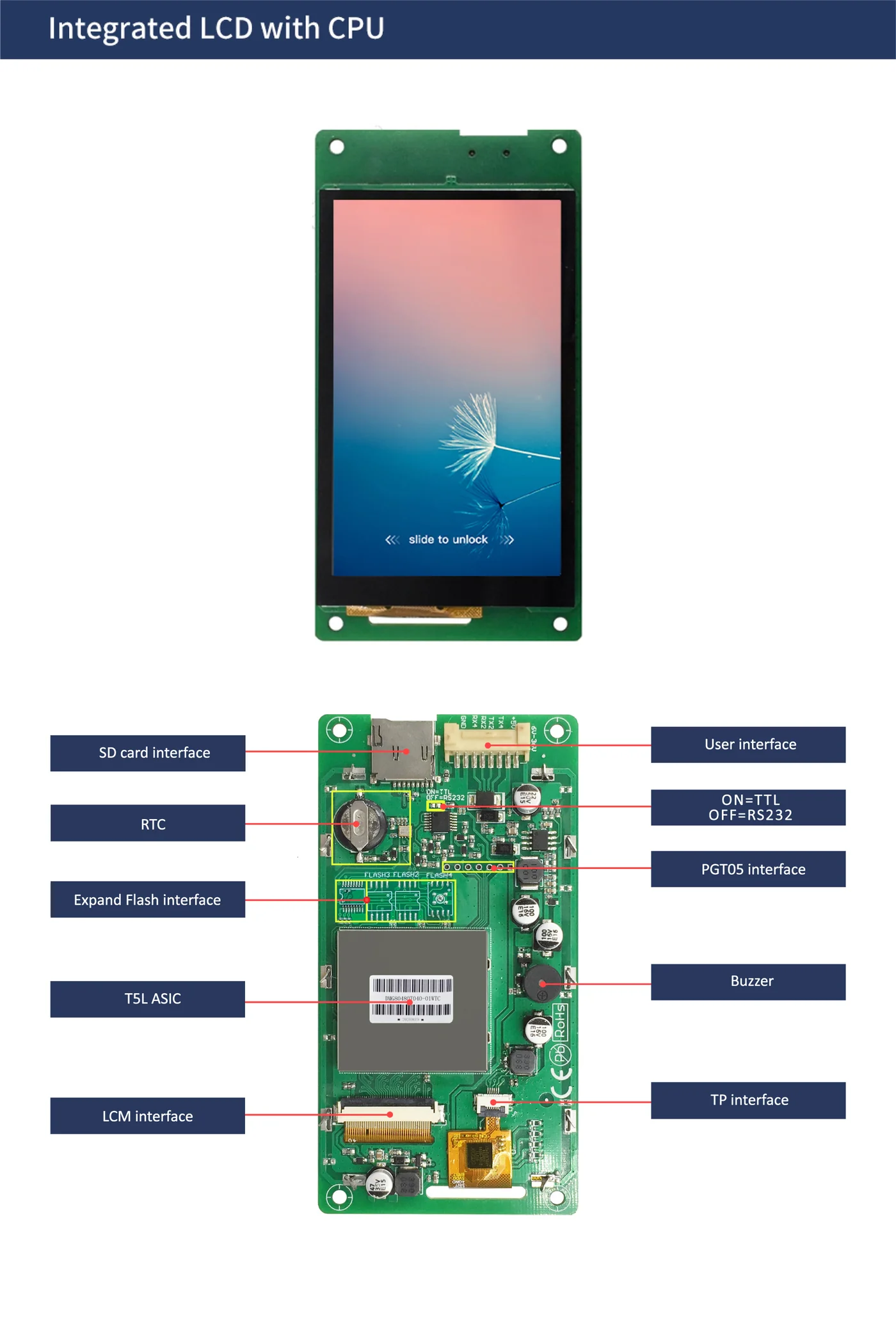

Technical Specifications

Brand:
DWIN
Display Size:
4.0 inch
Resolution:
480x800
Display Panel:
IPS-TFT-LCD
Touch Type:
Capacitive
View Angle:
Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Color:
18-bit 6R6G6B
Display Area:
86.4mm (W)x51.8mm (H)
Power Supply:
12V 1A DC
LCM interface:
FPC40_0.5mm, RGB interface
Memory:
16MB
Buzzer:
3V passive buzzer
SD Interface:
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 Interface:
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Brightness:
350nit
RTC:
Yes
Reserved USB Interface:
Horizontal USB interface, Used for firmware burning
User Interface:
8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Interface:
TTL/UART
Weight:
87g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

4.0" HMI LCD Display with Capacitive Touch - Industrial Grade Powerhouse for Seamless Human-Machine Interaction

Elevate your industrial control systems with the DWIN 4.0 Inch HMI LCD Display, a robust and versatile solution designed for demanding environments. This cutting-edge display boasts a high-resolution 480x800 IPS TFT LCD panel, ensuring crisp visuals and vivid colors for optimal user experience.

Key Features:
  • Effortless Touch Control: Navigate menus, input data, and interact with your applications seamlessly using the responsive capacitive touch screen.
  • 16MB Flash Storage: Ample space for storing complex graphical user interfaces (GUIs), animations, and operational data.
  • Built-in Buzzer and RTC: Enhance user feedback with audible alerts and maintain accurate timekeeping with the integrated real-time clock.
  • Flexible Connectivity: Utilize the SD card interface for easy project updates or connect via TTL/RS232 for versatile communication options.
  • Simplified GUI Development: Create intuitive and visually appealing interfaces with the user-friendly DGUS V7.6 GUI development tool, even without prior coding knowledge.
  • Dual Development System: Choose between DGUS II or TA (Instruction set) development environments for maximum flexibility.
  • Wide Viewing Angles: Enjoy clear visibility from all angles with the IPS display technology, ensuring consistent image quality in any orientation.
  • GUI & OS Dual-Core: Experience smooth performance and responsive operation thanks to the dedicated GUI and OS dual-core architecture.
  • DWIN OS Open for Customization: Tailor the DWIN OS kernel to your specific requirements using either DWIN OS language or KEIL C51.
Industrial-Grade Reliability:
Built to withstand the rigors of industrial applications, this HMI display features an industrial-grade design with a robust construction and reliable performance. It is the ideal choice for applications in manufacturing, automation, process control, and more.

Unlock the Power of Intuitive Control:
Transform your industrial operations with the DWIN 4.0 Inch HMI LCD Display. Its intuitive touch interface, powerful features, and industrial-grade reliability make it the perfect solution for seamless human-machine interaction in demanding environments.
