4.0 Inch 480x480 COF TFT LCD Display 16MB Flash UART

DWIN

No reviews yet Write a Review
SKU:
353-DMG48480F040_05WN
MPN:
DMG48480F040_05WN
4.0 Inch 480x480 IPS TFT LCD Display Touch Module – T5F0 ASIC with DGUS II HMI Platform
Quantity
Unit Price (ex. GST)
1 - 9
₹ 695.00
10 or above
₹ 667.20
4.0-inch 480x480 IPS TFT LCD display with touch support, T5F0 ASIC, DGUS II HMI platform, UART2, SD card slot, and RTP/CTP compatibility. Compact square design for IoT and HMI projects. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹820.10 inc. GST
₹695.00 ex. GST
22 people looking at this.

Technical Specifications

Brand:
DWIN
Display Size:
4.0 inch
Resolution:
480x480
Display Panel:
IPS
Touch Type:
Touch Module
View Angle:
85°/85°/85°/85°(L/R/U/D)
Display Area:
71.86mm (W)×70.18mm (H)
Power Supply:
HDL662SZ5 adapter board power supply
Brightness:
300nit
User Interface:
20Pin_0.5mm FCC
Flash:
16MB

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

4.0 Inch 480x480 IPS TFT LCD Display Touch Module: Compact Square HMI Solution with DGUS II Platform

The 4.0-inch 480x480 IPS TFT LCD Touch Module is a high-quality, compact display designed for embedded HMI applications, smart devices, and industrial controllers. Powered by the T5F0 ASIC and running on the DGUS II HMI platform, it enables simplified GUI development with rich interface options. Its IPS panel ensures vibrant colours, wide viewing angles, and clear visuals, while the 480x480 square resolution makes it suitable for compact, modern interfaces.

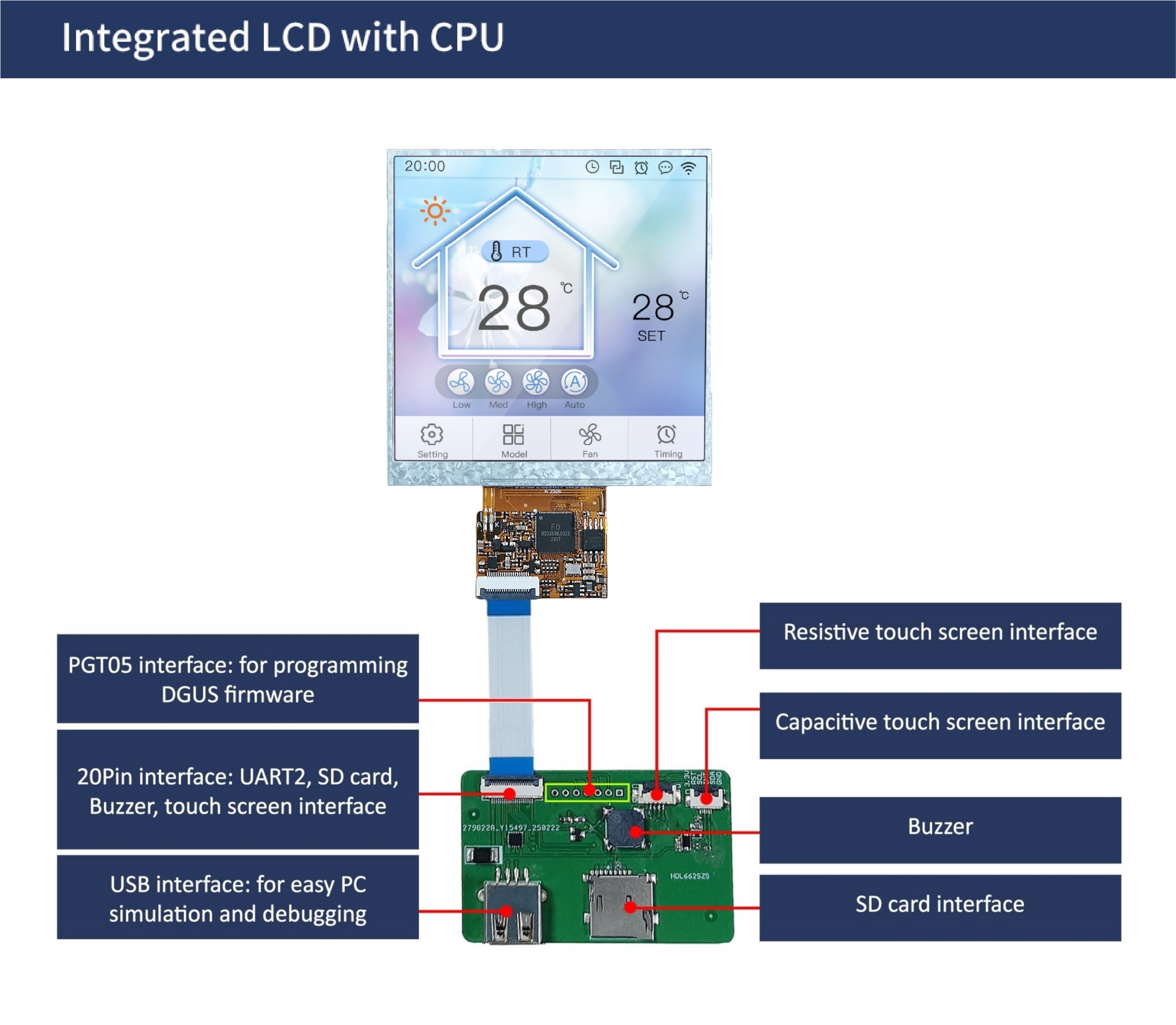

This module features a 20-pin interface, supporting UART2, SD card input, buzzer, and touch panel connectivity. It is compatible with 4-wire resistive touch panels (RTP) and capacitive touch panels (CTP), and can also connect to a buzzer or external speaker for audio interaction. Combining a robust feature set with a small form factor, this display is ideal for IoT dashboards, handheld devices, and compact HMI panels.

Key Features

  • T5F0 ASIC Platform: Runs on DGUS II HMI platform for efficient GUI design and deployment.
  • High-Quality Display: 4.0-inch IPS TFT LCD with 480×480 resolution and wide viewing angles.
  • 20-Pin Expansion Interface: Includes UART2, SD card slot, buzzer, and touch panel interface.
  • Touch Compatibility: Supports 4-wire RTP and CTP touch panels.
  • Audio Support: Can connect to a buzzer or speaker for sound output or alerts.
  • Compact Square Form Factor: Perfect for small-scale embedded devices, smart panels, and IoT applications.
