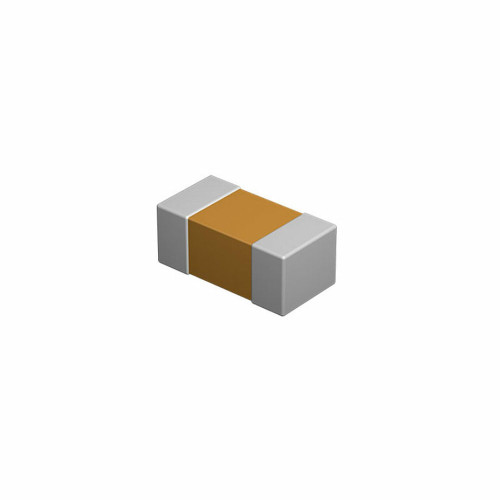

220pF 1000V C0G (NP0) 1206 MLCC Capacitor for RF, Snubber, and Precision Circuits
This 220pF multilayer ceramic capacitor in a 1206 SMD package is designed with C0G (NP0) dielectric, offering exceptional stability and ultra-low loss performance for high-voltage and precision applications. With a 1000V rating and ±5% tolerance, it is ideal for RF circuits, snubber networks, and high-voltage filtering where accurate and stable capacitance is critical. The 1206 package ensures enhanced insulation, high voltage endurance, and mechanical strength for demanding environments.
The C0G dielectric provides near-zero capacitance variation across temperature and voltage, making this capacitor highly reliable for frequency-sensitive and high-voltage designs. With low ESR and a high Q factor, it ensures superior signal integrity and efficiency in RF and analogue circuits. It is widely used in oscillators, resonant circuits, high-voltage coupling, EMI suppression, and precision timing applications requiring long-term stability.
Key Features
- Capacitance Value: 220pF suitable for RF and high-voltage applications
- Voltage Rating: 1000V DC for high-voltage circuits
- Dielectric Type: C0G (NP0) for superior stability and low loss
- Tolerance: ±5% for accurate and consistent performance
- Package Size: 1206 SMD package for enhanced durability and insulation
- High Q Factor: Ideal for RF, resonant, and precision circuits
- Temperature Stability: Near-zero capacitance drift across temperature variations
- Low ESR: Minimises energy loss in high-frequency applications
