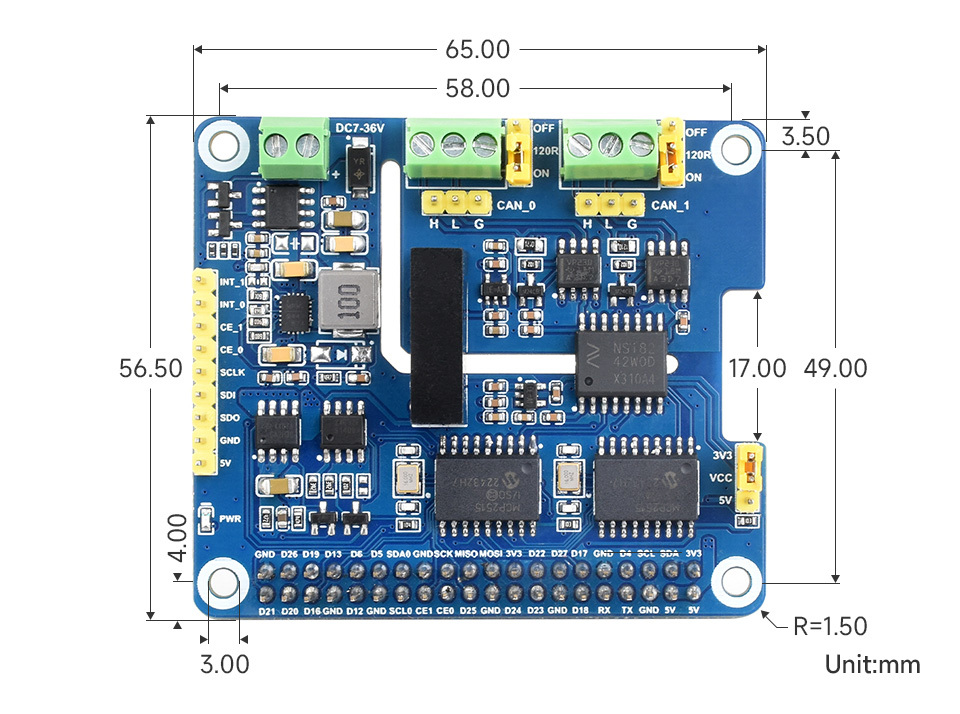

2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi: Expand Reliable Multi-Channel CAN Communication with Superior Isolation
Unlock powerful, dual-channel CAN communication for your Raspberry Pi projects with the 2-Channel Isolated CAN Bus Expansion HAT. Designed to meet the growing needs of industrial automation, automotive diagnostics, and advanced robotics, this HAT integrates two independent CAN channels using the MCP2515 and SN65HVD230 chipset combo. Its stackable and compact design makes it ideal for Raspberry Pi Zero, 2B, 3B, 3B+, 4B, and the latest 5 model, ensuring compatibility across a broad range of applications.
This CAN HAT features onboard power and digital signal isolation, enhancing the safety and stability of data transmission even in electrically noisy environments. The inclusion of SM24CANB protection ensures defense against ESD and voltage transients. With onboard EEPROM for automatic configuration and jumper-selectable voltage (3.3V/5V), it’s designed for seamless integration and efficient deployment in demanding embedded systems.
Key Features for Industrial and Embedded Applications:
-
Dual-Channel CAN Communication: Features MCP2515 and SN65HVD230 chipset solution supporting two independent isolated CAN channels.
-
Full Raspberry Pi Compatibility: Works with Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, 3B+, 4B, and 5 via the standard HAT+ interface.
-
Signal and Power Isolation: Includes onboard digital isolator and power isolation module for robust, stable communication with reduced interference.
-
Built-In ESD and Voltage Protection: Integrated SM24CANB provides protection against electrostatic discharge and voltage transients.
-
Flexible Voltage Selection: Jumper selectable 3.3V/5V logic level makes it compatible with a variety of host devices.
-
Configurable Terminal Resistor: Onboard 120Ω terminal resistor enabled via jumper cap for easy bus termination.
-

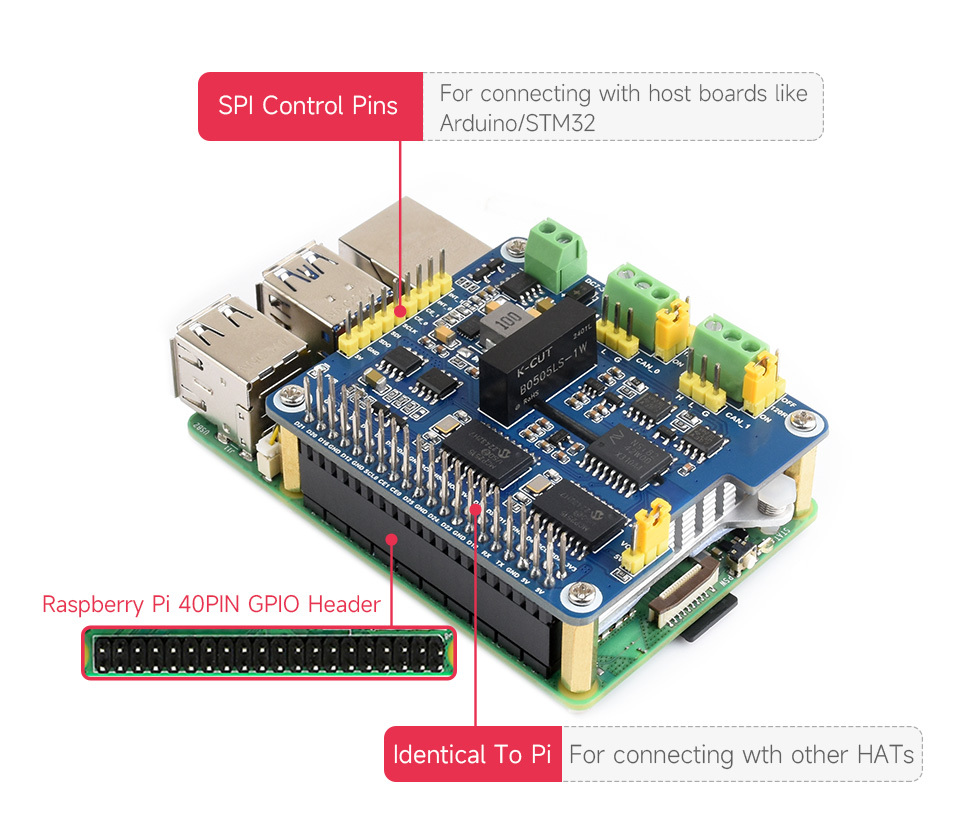

SPI Interface Support: Breakout SPI interface enables connection with STM32, Arduino, and other host controllers.
-

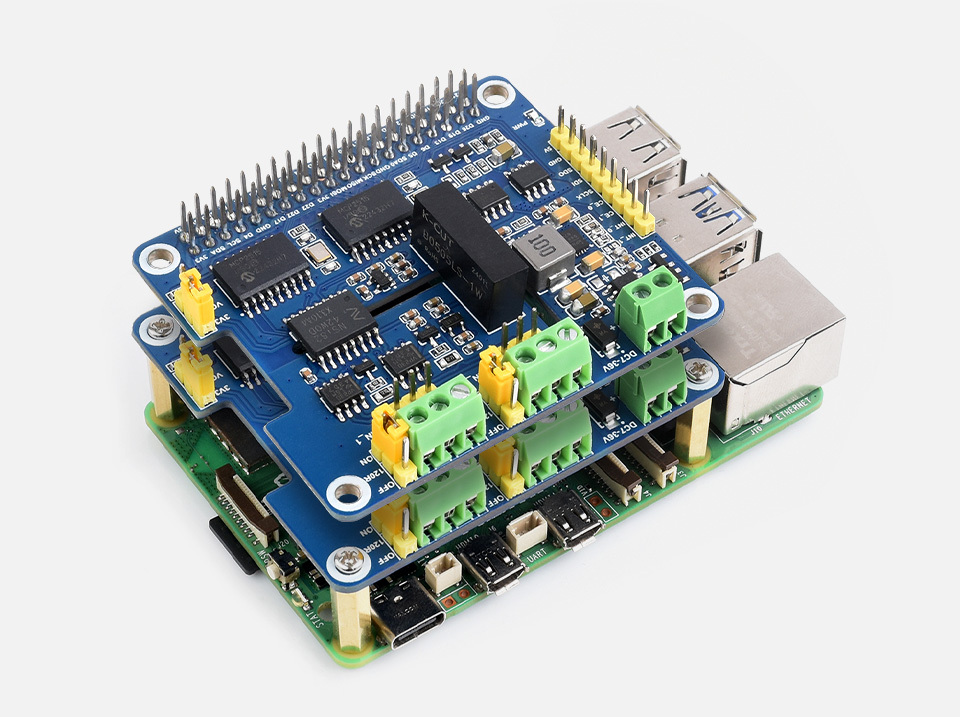

Stackable Design: Stack multiple HATs for expanding more CAN channels without compromising space.
-
EEPROM Integration: Onboard EEPROM for HAT identification and automatic configuration under Raspberry Pi OS.
-
Comprehensive Documentation: Includes sample codes, manuals, and setup guides for rapid development and integration.
