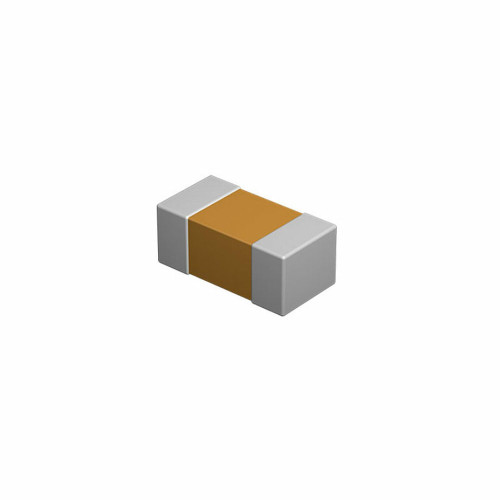

1uF 16V X5R 0402 MLCC Capacitor for Compact Power Decoupling, Filtering and High-Density SMD Designs
The 1uF 16V X5R 0402 MLCC ceramic capacitor (CC0402KRX5R7BB105) is engineered for efficient power decoupling and noise filtering in ultra-compact electronic circuits. Built with X5R dielectric, it provides stable capacitance across a moderate temperature range, making it suitable for general-purpose applications in both analogue and digital systems. The miniature 0402 SMD package is ideal for high-density PCB layouts, enabling designers to optimise board space in applications such as smartphones, wearables, IoT modules, and embedded systems. With a ±10% tolerance and 16V voltage rating, this capacitor ensures reliable performance in low-voltage power rails and signal conditioning circuits.
Key Features
- Capacitance Value: 1uF (1000nF) suitable for decoupling and energy storage
- Voltage Rating: 16V supports low-voltage electronic circuits
- Dielectric Type: X5R ensures stable performance from -55 C to+85 C
- Tolerance: ±10% for general-purpose applications
- Package Size: 0402 (1005 Metric) ultra-compact SMD footprint for dense PCB layouts
- Temperature Stability: Capacitance variation within ±15% across operating range
- Low ESR: Enhances efficiency in power filtering and noise suppression
- Multilayer Construction: Ensures high reliability in compact designs
- Applications: Power supply decoupling, bypass circuits, filtering, embedded systems, mobile devices, IoT electronics
