0.96-inch USB-C Power Meter, Power-off Data Storage And Real-time Status Monitoring

Resources:

Wiki: www.waveshare.com/wiki/USB-C-Power-Meter

0.96inch USB-C Power Meter, Onboard Type-C ports, Supports Power-off Data Storage And Real-time Status Monitoring, Portable & Lightweight

The 0.96 inch USB-C Power Meter is a compact, high-performance testing tool designed for accurate monitoring of USB-C power delivery and charging performance. Engineered for both professional engineering use and everyday diagnostics, it enables real-time measurement of voltage, current, power, and capacity across a wide range of USB-C powered devices. With bidirectional current measurement, peak recording, and power-off data storage, this power meter provides detailed insights into charging behaviour and efficiency. Its onboard Type-C ports ensure true plug-and-play operation, while the lightweight CNC aluminium alloy enclosure makes it durable, portable, and easy to carry for field testing and lab use.

Key Features

• Bidirectional Current Measurement – Supports precise monitoring of charging and discharging with 0–12A current and 4–30V voltage range
• Real-Time Power Monitoring – Displays voltage, current, power, charging speed, and capacity simultaneously
• Capacity Recording & Data Storage – Retains measurement data even after power-off for later review
• 0.96-Inch IPS Display – Clear and bright display with wide viewing angles and rotation support
• Dual Display Pages – Single-click to switch data pages and double-click to rotate screen orientation
• Onboard USB Type-C Ports – Plug-and-play design for fast and easy device connection
• High-Current Support – 12A rated connector ensures stable operation under heavy load conditions
• High-Precision Sampling Circuit – Delivers accurate voltage and current measurements for reliable test results
• CNC Aluminium Alloy Enclosure – Dustproof, shock-resistant, lightweight, and portable with approximately 9.7g net weight
• Wide Device Compatibility – Suitable for testing chargers, power banks, laptops, smartphones, and other USB-C devices.

For reference only, please refer to the package content for detailed part list.

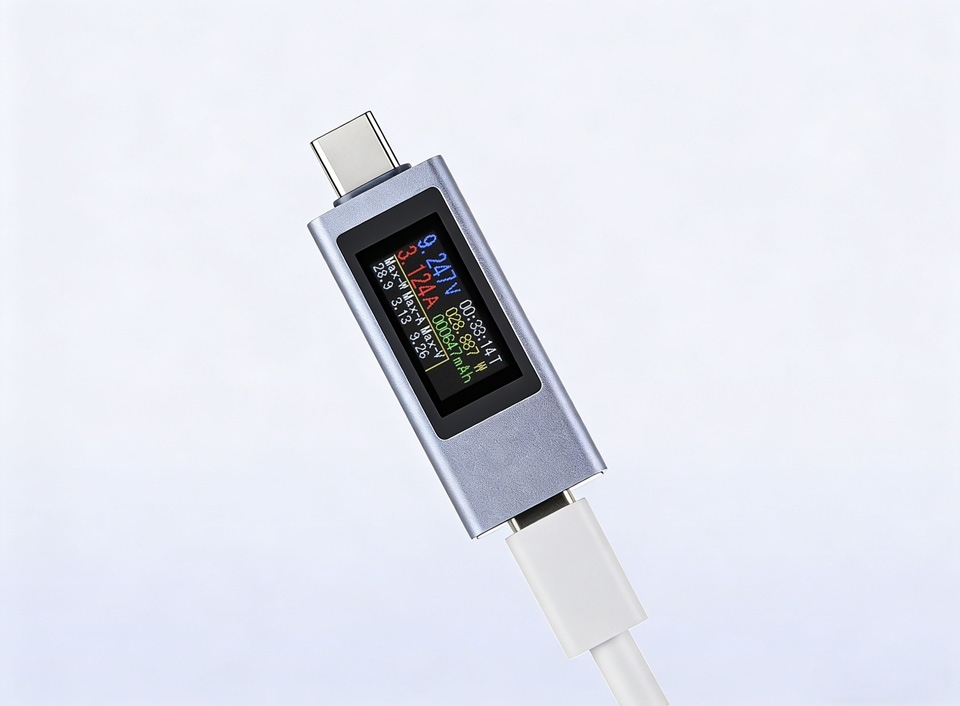

Onboard Type-C Ports, Plug and Play

Suitable for various USB-C devices, plug and play, easy connection

For reference only, please refer to the package content for detailed part list.

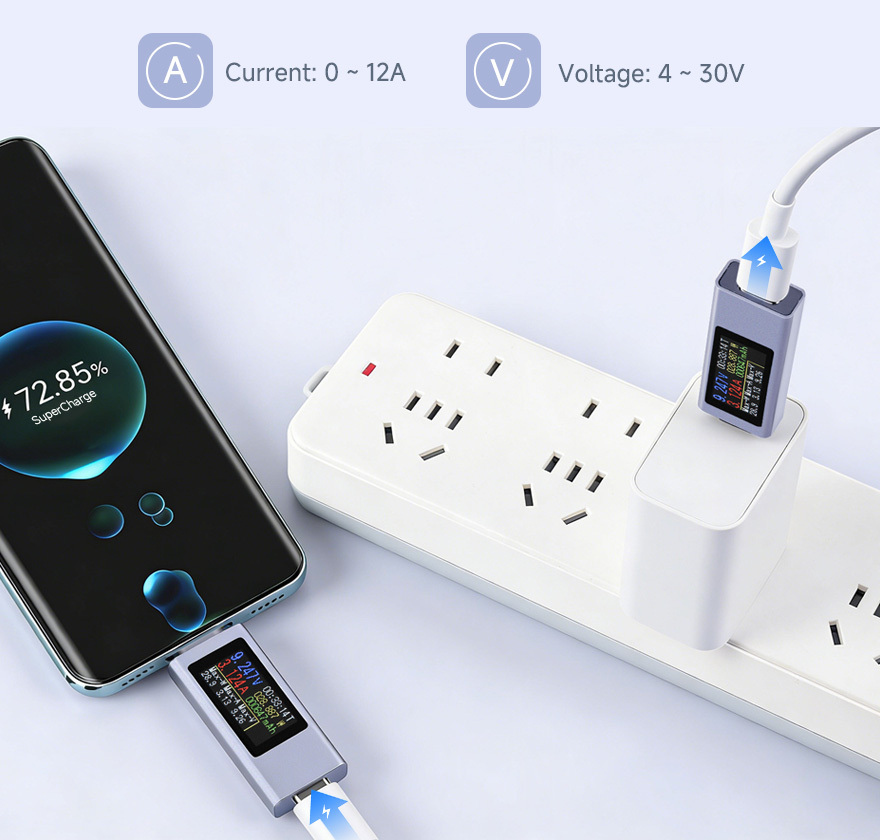

Application

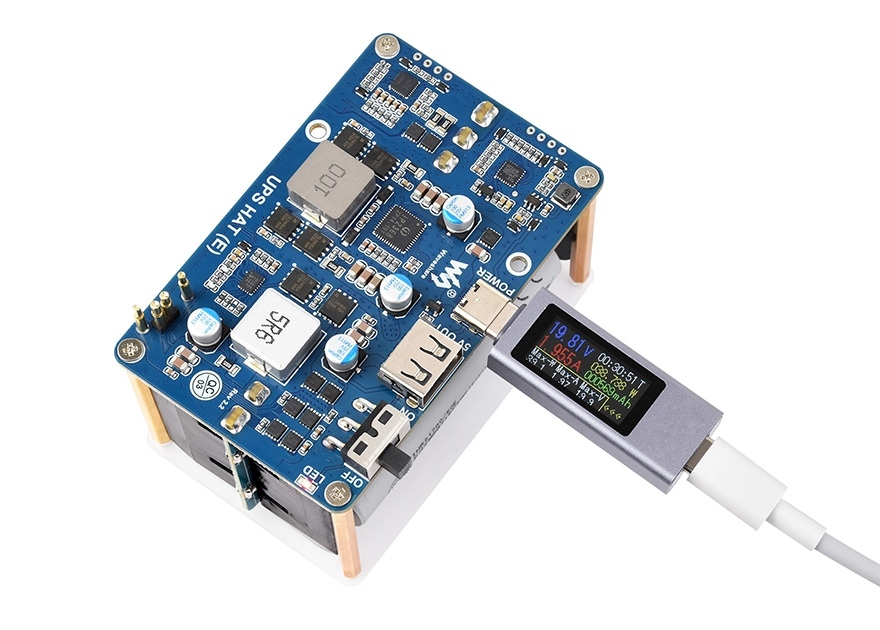

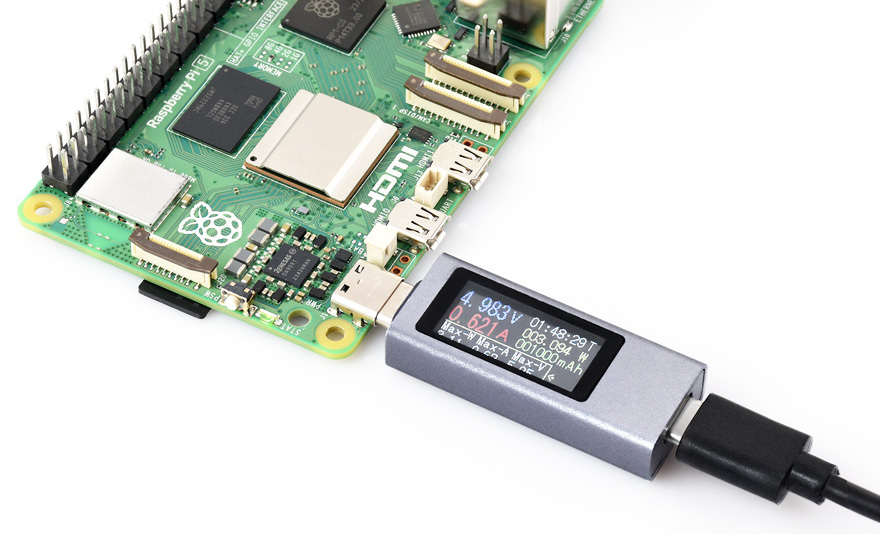

Device Capacity & power measurement, Supports Power-off Data Storage

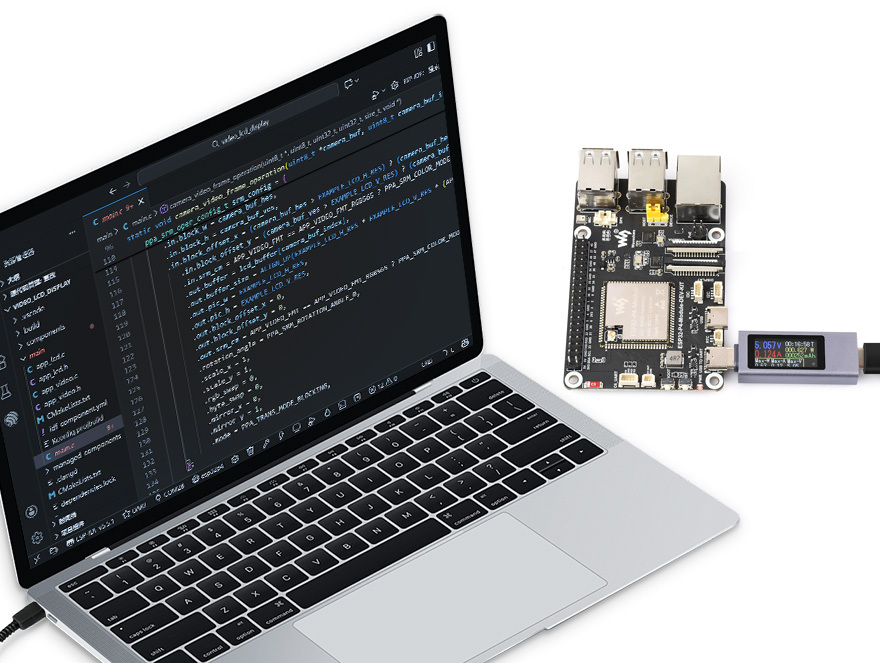

Real-Time Monitoring of Device Voltage / Current, Key Data at a Glance

For reference only, please refer to the package content for detailed part list.

Button Operation Instructions

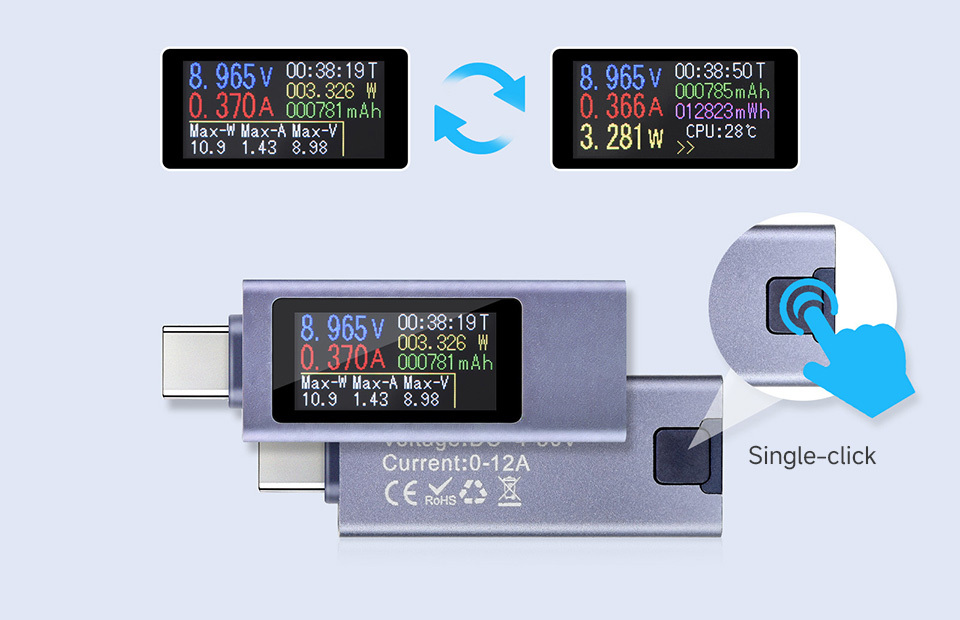

Single-Click To Switch Pages

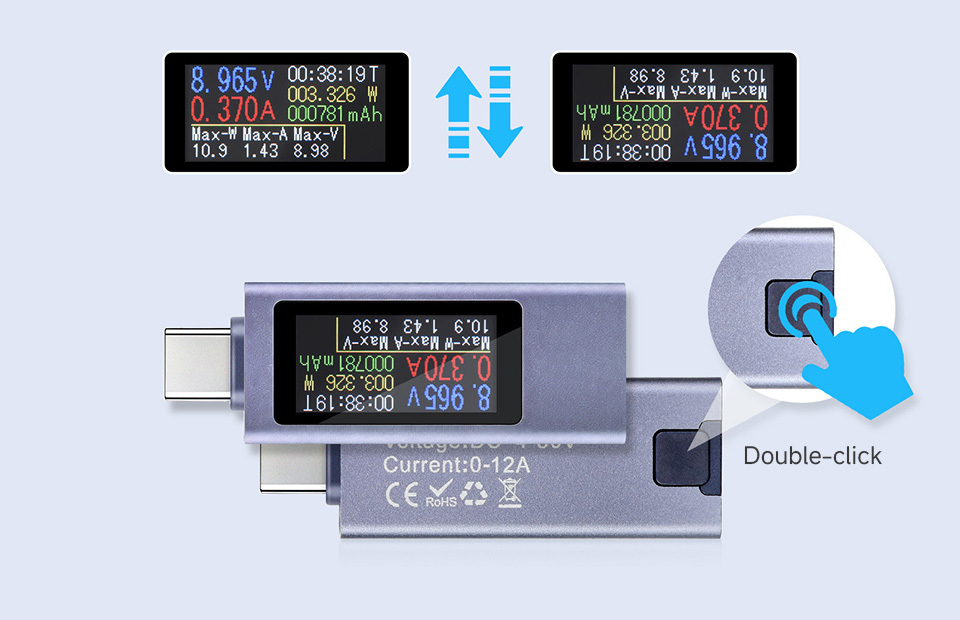

Double-click to rotate the display orientation

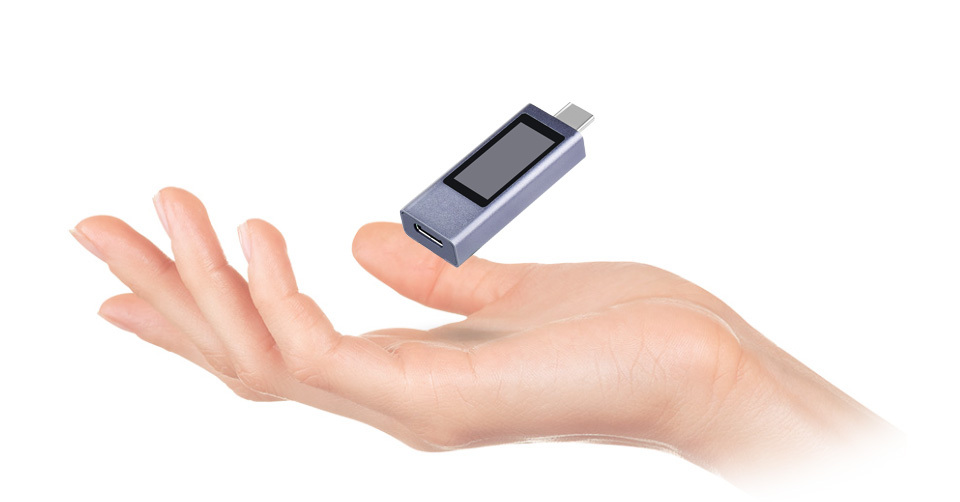

Lightweight And Portable



CNC Metal Case, Dustproof and Shockproof, ~ 9.7g Net Weight, Lightweight and Portable, Effortless to Carry Anywhere

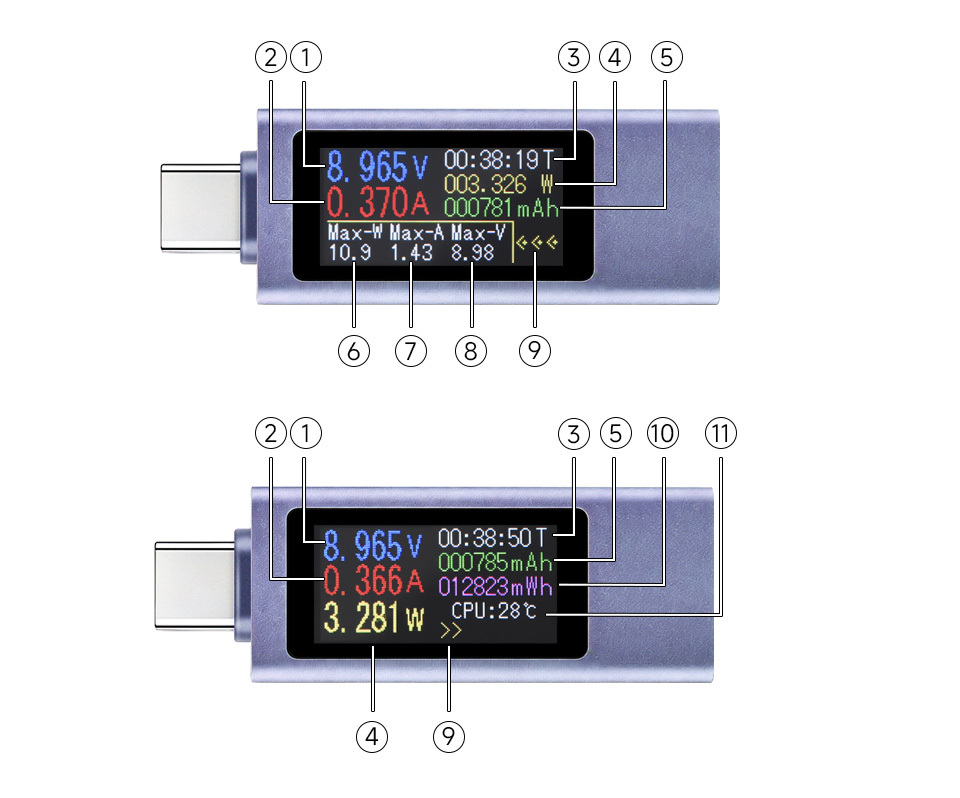

Data Description





1. Voltage: 4 ~ 30V
2. Current: 0 ~ 12A
3. Timing: 0 ~ 99 hours
4. Power: 0 ~ 360W
5. Capacity: 0 ~ 99999mAh
6. Record single maximum power
7. Record single maximum current
8. Record single maximum voltage
9. Current direction marker
10. Energy: 0 ~ 99999Wh
11. CPU temperature

This product is not recommended to operate at a 12A peak current for extended periods.

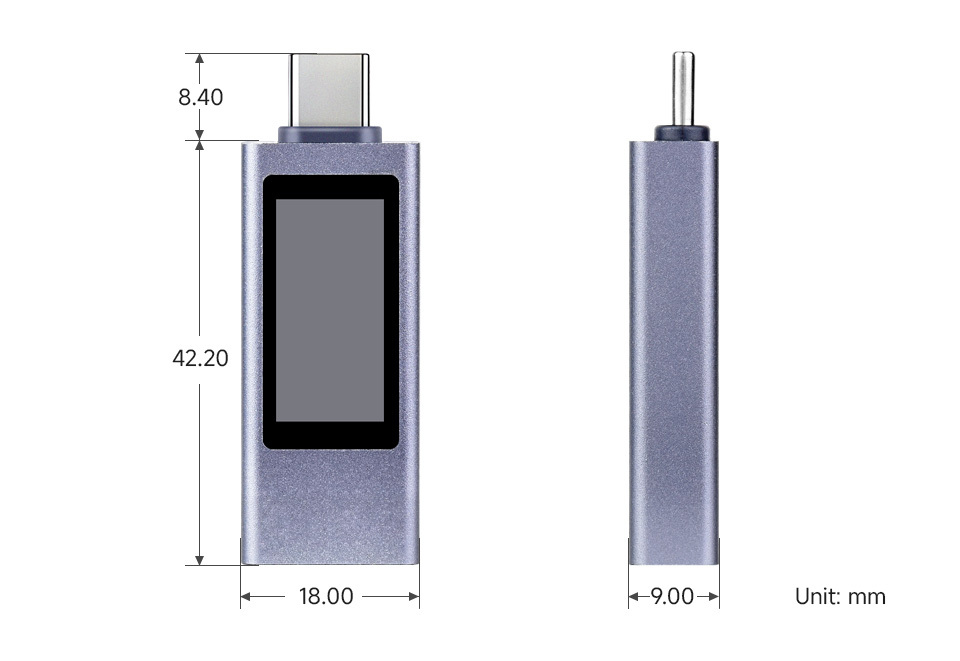

Dimensions

Package Includes:

• USB-C-Power-Meter x1
